SMALLRIG 2348 Monitor Stand w/ Swivel and Tilt w/ Positioning Pins Arri
Key features:
1. Supports 5" and 7" monitors up to 1.2kg.
2. Rotate 360° and tilt 170° with free stop in any position.
3. Features holes in the thumbscrews for hex wrenches.
4. Rubber pad on the top to prevent scratches.
5. Pull out the locating pins on the bottom to prevent twisting.

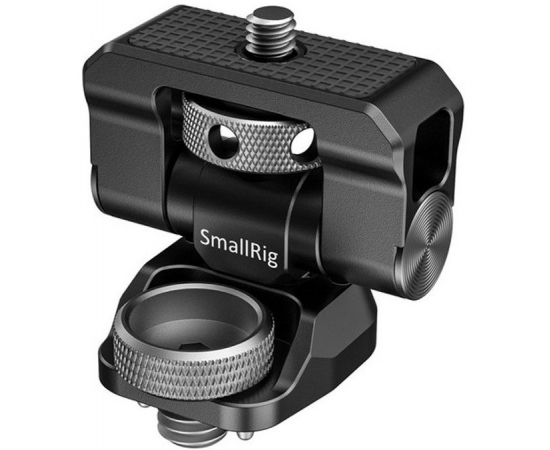

The SmallRig Swivel and Tilt Monitor Stand with Arri Locating Pins BSE2348 is designed to hold the monitor in the camera cage or other mounting system with 3/8" Arri locating hole.
It has 3/8" Arri locating pins on the bottom and 1/4"-20 screws on the top for monitor, light, or microphone.
The stand allows you to rotate 360° sideways and tilt 170°, which allows you to hold the monitor in any position without using tools.
The rugged mount is made of CNC-machined aluminum and can support 5" and 7" monitors up to 1.2kg.
For vertical payload of (90°), it can hold accessories up to 2.5 kg.
The top has a rubber pad to protect the monitor and light from scratches.
The thumbscrew has holes for a hex key to hold it firmly and ensure the safety of your monitor.
Designer: Tracy Joy
Note 1: Maximum payload: 1.2 kg ; 90° vertical payload: 2.5 kg.
Note 2: Please use the hex wrench to retighten the thumbscrew to ensure safety.
Note 3: Please connect your monitor or light to the camera body before adjusting the angle of the monitor mount.
Box Contents:
1x Monitor Stand
1x Hex wrench
