SEETEC ATEM156S-CO 15.6" SDI Monitor with Flight Case

15.6" 3G-SDI/HDMI BROADCAST DIRECTION MONITOR
All-in-one solution for multi-camera filming, monitoring and post-production. SEETEC ATEM156S-CO is a portable Full HD broadcast monitor, equipped with 4 3G-SDI inputs and outputs, 1 HDMI input interface, and RS485 and GPI control interfaces.
It adopts the Rec.709 color standard, displaying vivid images and professional effects.
Robust and durable aluminum housing; with 3D LUT, waveform, vectorscope, histogram, peak focus, and other amazing functions, all easily operable and controlled by the front panel buttons.
The portable aircraft aluminum box easily supports even filming in harsh locations. It's the ideal monitor for film and television, broadcast, and post-production crews!

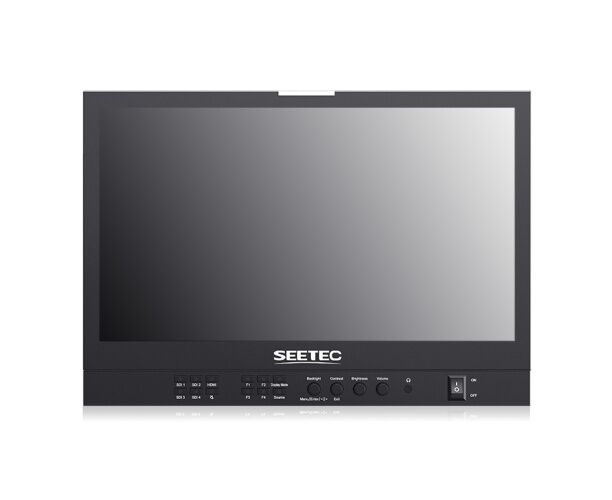

15.6-INCH FULL HD LCD DISPLAY
The ATEM156S-CO adopts a 15.6-inch LCD panel with a high resolution of 1920x1080, accurate color reproduction, and provides a natural and clear image; 800:1 contrast ratio and 170° wide viewing angle allow you to clearly view content regardless of viewing angle.

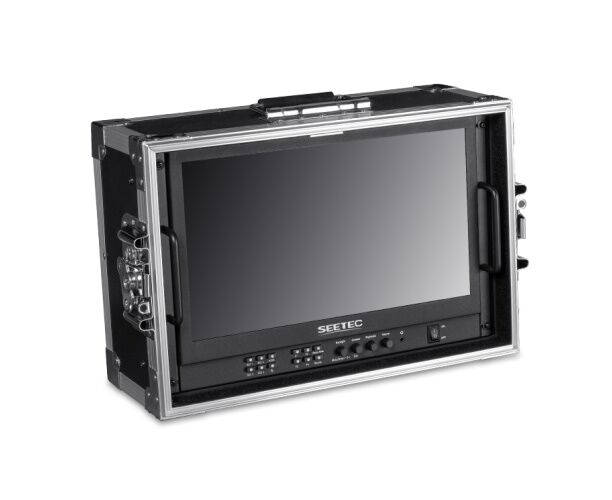

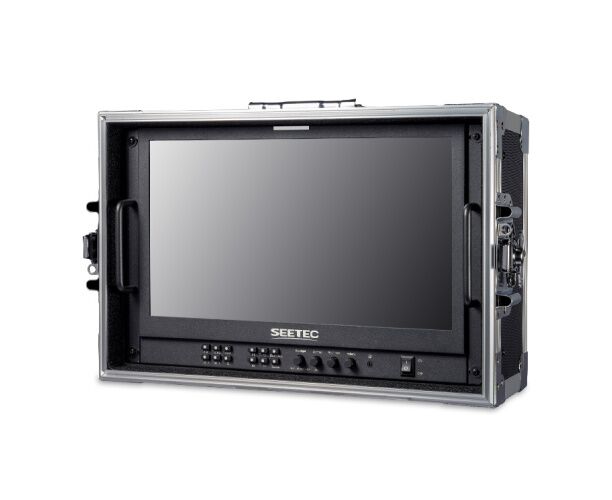

PORTABLE CASE IN AIRCRAFT ALUMINUM: THE IDEAL CHOICE FOR FILMING
Time and costs are crucial for film crews, especially in scenarios with frequent scene changes during shoots.
The ATEM156S-CO, with its aeronautical aluminum case, offers protection against dust, water, high temperatures and corrosion.
It is perfect for transport and use in various environments, providing greater safety to the monitor.

QUICK DISASSEMBLY AND ASSEMBLY, NO TOOLS REQUIRED
The innovative design of the combined structure allows you to quickly disassemble and install the monitor, making it easy to use both indoors and outdoors.

COMFORTABLE HANDLE
The handle, which is moderately sized and comfortable to hold, effectively relieves the feeling of heaviness caused by the movement of the device, making it easier to carry.

BUTTERFLY CLASP T
Both the internal parts of the box and the front and back lids have a beautiful butterfly-shaped closure, which is durable and elegant.

ACCURATE COLOR REPRODUCTION WITH REC.709 COLOR STANDARD
Accurate color reproduction is one of the important indicators for evaluating professional monitors.
The ATEM156S-CO has built-in 3D LUT, adopts the Rec.709 HD professional color standard, and utilizes color calibration technology, with professional factory calibration to ensure consistent color reproduction on each monitor.

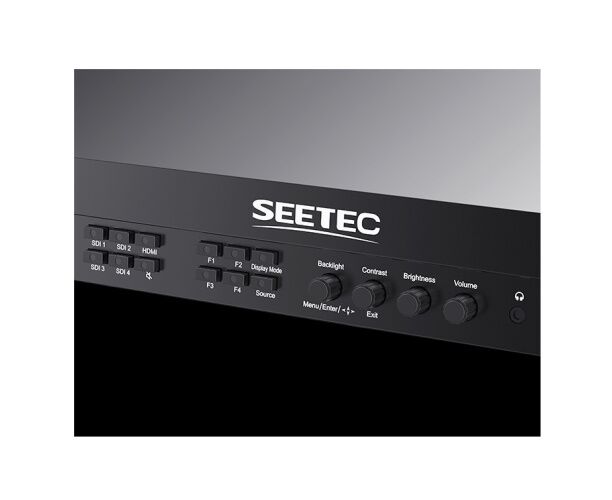

FLEXIBLE AND INTUITIVE PUSH-BUTTON OPERATION
When you're busy on set, you need to control the equipment with ease, and ATEM156S-CO meets that need.
It allows you to switch between sources with a single button, set up custom shortcuts, and quickly adjust brightness, contrast, volume, and other settings, making it easy to shoot.
The backlit button design makes it easy to distinguish between the current input signal and the hotkeys in use, making it easy to handle even in low-light studios or outdoor environments.

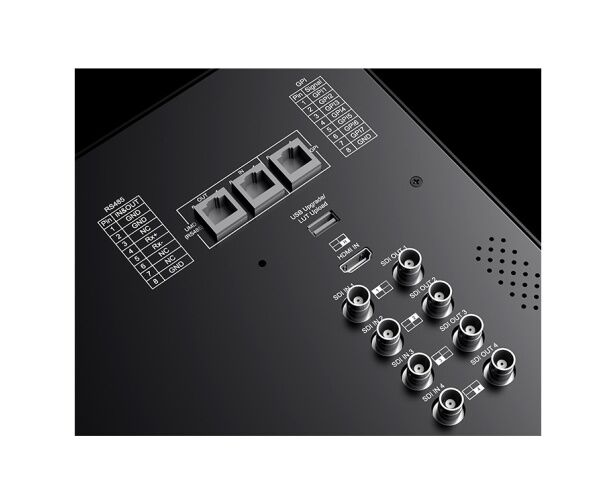

4 3G-SDI INPUTS AND OUTPUTS: PERFECT SDI MONITORING
ATEM156S-CO monitors are the ideal choice for adding SDI monitoring wherever you need it.
They have 4 3G-SDI signal inputs and outputs, suitable for multi-camera team shooting and simultaneous monitoring by multiple people.
In addition, they have HDMI, RS485 input and GPIO control interface, meeting different needs.

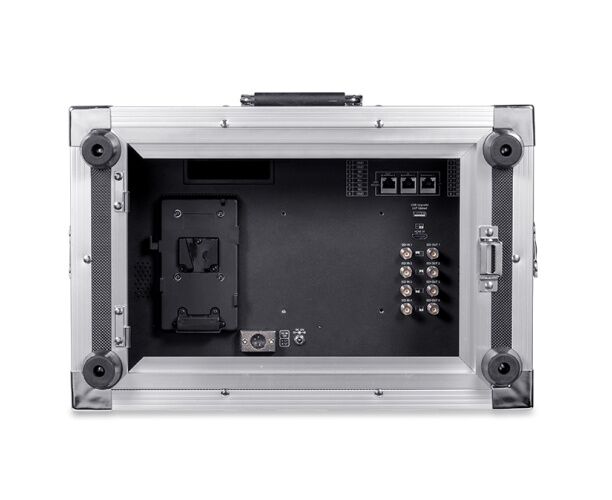

MULTIPLE POWER OPTIONS FOR LONG BATTERY LIFE RECORDINGS
The monitor offers DC 12V/2A~3A power, XLR connector, and Sony V-mount battery plate as options.
Note: The default battery plate is V-mount, but the customer can choose Panasonic Anton plate optionally.

PROFESSIONAL ON-SET MONITORING TOOLS: PRECISE FOCUS AND EFFICIENT MONITORING
The monitor offers a series of professional monitoring auxiliary tools, such as waveform, 3D LUT, peak filter, histogram, vectorscope, audio meter, time code, anamorphic mode, etc.
All functions can be easily selected and operated from the menu, and it is also possible to configure shortcut buttons or control them via GPI.
This significantly improves the efficiency of filming on location and post-production.

LUT 3D: RECREATE CINEMATIC VISUALS. SUPPORTS UP TO 36 CUSTOM LUTS
The 3D LUT is a table for quickly fetching and generating color-specific data.
By loading different 3D LUT tables, you can quickly recombine color tones to form different color styles.
It has 4 built-in DE-log LUTs and also allows you to upload custom .cube files via pen drive (up to 36 files).

HDR MONITORING: WHAT YOU SEE IS WHAT YOU GET
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, effectively enhancing overall image quality.
When HDR is enabled, you can select Gamma and Gamut corresponding to Sony, Canon, Panasonic, Fujifilm, Bolex, RED, and ARRI brands.

ACCURATE WAVEFORM MONITORING. SAVE YOUR BUDGET
With built-in waveform monitoring, you can choose between waveform visualization (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, phase, and audio level, getting accurate monitoring for live streams that shows you everything you need to know technically about your video and audio signals.
The functions can be opened separately and also support opening all oscilloscope modes with a single touch (with right/left adjustment).
The ATEM156S-CO becomes the ideal choice for live production monitoring, eliminating the need for expensive, separate oscilloscopes!

GYNAMIC UMD'S ATEM156S-CO SUPPORTS TSL 3.1 /4.0 PROTOCOL
with TSL address selection from 0 to 126 and display of a maximum of 16 letters.
UMD performs inputs and outputs via RS485 port.

INDICATOR LIGHTS
GPI signals control the red and green signals, which not only remind the photographer to enter recording mode, but also allow you to appreciate the convenience of near-professional television shooting technology in your creations.

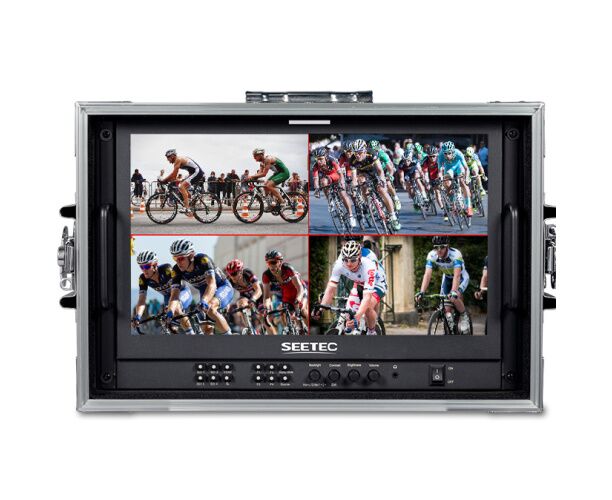

MULTIPLE VIEWS: MEET DIFFERENT MONITORING NEEDS
The screen can be configured for full screen, picture-over-picture (PiP), and four screens to meet different monitoring needs.
In PiP mode, the size and position of the subwindow can be adjusted.
In four-screen mode, the SDI signal is displayed simultaneously with 4-channel audio meter and 4-channel timecode.

16-CHANNEL AUDIO LEVEL METERS
The monitor can extract the embedded audio from SDI and HDMI signals. Supports selecting any 2 audio channels for output via the 3.5mm headphone jack.
With SDI audio, it supports the display of built-in audio meters of up to 16 channels.
With HDMI audio, it supports the display of only 2 audio channels.

CUSTOM MENU CONFIGURATION

ATEM156S-CO offers 4 groups of custom menu settings, which will be automatically saved after setup.
There is no need to reset the menu the next time the appliance is turned on, saving time and money.

PORTABLE LENS HOOD
New sunscreen with extended screen, to achieve the ideal visual effect in practically all environments.

APPLICATION IN VARIOUS ENVIRONMENTS
Whether in cold snow environments or hot desert, ATEM156S-CO works with ease.

TEAM CODE
The monitor supports the display of time code in SDI signal, synchronizing with the camera.
Through time code, you can quickly and accurately find a specific frame in the video.
This is particularly useful for identifying specific frame rates in filming, television post-production, and video production.

Box Contents:
1x Monitor
1x Power Adapter
1x V-Mount Battery Plate
1x Mini-HDMI Cable
1x SDI Cable
1x Lens hood
1x Rigid Carrying Case
