SEETEC 17.3' Monitor in Rack Format P173-9HSD-RM
SEETEC P173-9HSD-RM MONITOR OVERVIEW
SEETEC's 17.3" rack broadcast monitor with 4K resolution has a 1920 x 1080 display and supports signals up to UHD 4K30.
It offers HDMI, 3G-SDI and analog inputs and outputs, RCA audio inputs and a tally port.

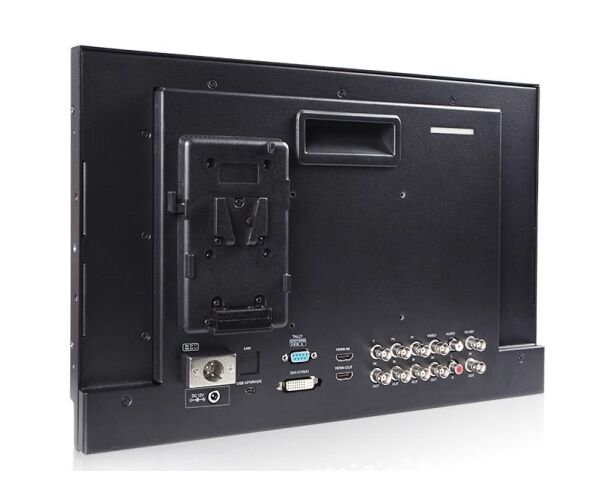

These connections are located on the rear panel, along with an integrated V-mount battery plate and 4-pin XLR power inputs and power connector.

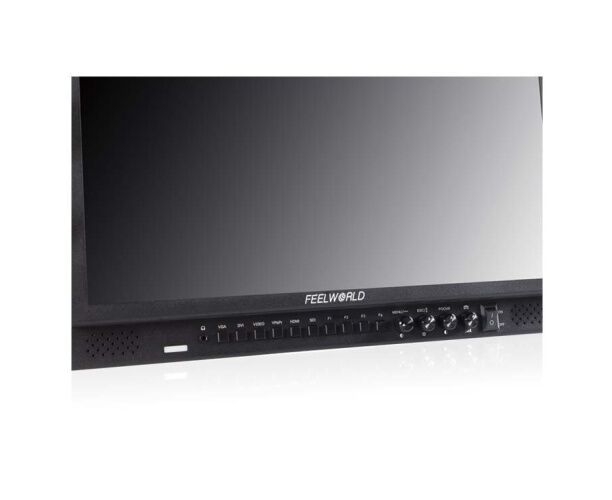

On the front, there is a headphone jack, integrated speakers, 3-color LED tally light and control and function buttons.

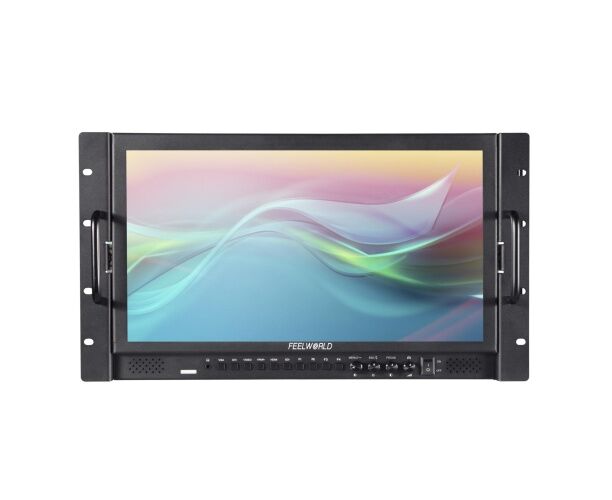

This rack version comes with mounting ears with integrated straps on the front.
The monitor's image analysis functions include focus peaking, zooming, and pixel-by-pixel assist, and can be assigned to the four front-panel function buttons.
THE SEETEC P173-9HSD-RM 17.3" FULL HD BROADCAST MONITOR
Rack-mount with 3G-SDI and HDMI supports up to 4K at 30Hz.
It adopts the Rec.709 color standard, displaying vivid images and professional effects.
It has a sturdy and durable aluminum frame.
Equipped with the VESA standard, it can be installed in a rack or on the wall.
The P173-9HSD-RM is the perfect professional monitor for any broadcast installation, mobile broadcast truck, or even flight kit.
FULL HD PANEL 1920X108
With the P173-9HSD-RM's 17.3-inch Full HD panel and 1920x1080 resolution, you see wide viewing angles, resulting in crisp, clear images in the field, which means less time in the editing room.
The P173-9HSD-RM's Full HD panel is the ideal tool for high-quality color reproduction.
ROBUST AND DURABLE, WITH EASY HEAT DISSIPATION
The all-aluminum alloy structure not only makes the device more solid and durable, but also solves the problem of heat dissipation.
The cast iron handles provide a comfortable grip.
EXTREMELY SLIM DESIGN AND SUITABLE SIZE
The P173-9HSD-RM, with its compact 7RU form factor, allows for easy integration into studios or post-production rack configurations.
ACCURATE COLOR REPRODUCTION
Using the Rec.709 color standard, the SEETEC monitor is compliant with the ITU standards and the Rec.709 HD video standard, with consistent color space and advanced image processing technology, resulting in sharp images and extremely natural colors.
This ensures accurate color reproduction, faithfully reproducing the reality of the footage and allowing users to accurately assess the quality of various incoming video signals.
THE INNOVATIVE OSD OPERATION
Not only does the P173-9HSD-RM have four "F" keys to assist peaking focus, field scan, select camera mode, pixel-by-pixel, center marker, safety marker, image flip, and more, but it also reserves the thumbwheel for professional users.
The dual function and rotary knob encoding dial are unique technological features of SEETEC, which provide a more convenient and faster operation experience.
THE PROFESSIONAL MONITOR
HASSLE-FREE ENERGY MONITORING WHEREVER YOU NEED IT!
We make it easier to feed the monitor. The P173-9HSD-RM can be powered in two ways: with a DC adapter or with lithium batteries.
The P173-9HSD-RM features a flexible battery system that supports V (standard) battery plates and Anton Bauer battery plates of your choice.
P173-9HSD-RM is a very high quality and extremely versatile monitor that is ideal for use in broadcasts, mobile live productions or film sets!

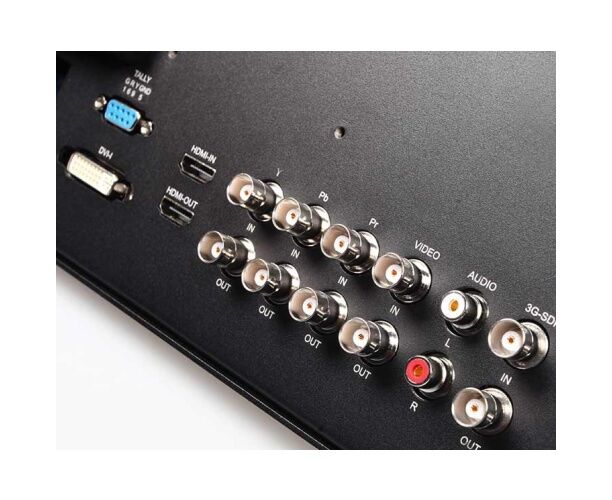

It offers 3G/HD/SD-SDI, HDMI, YPbPr, audio, video, and DVI inputs. With multiple input formats, it meets all the demands of analog, HD and SD video signals, as well as a set of professional functions.
PROFESSIONAL SHOOTING AUXILIARY FUNCTIONS:
The SEETEC monitor is ideal for monitoring high-quality broadcasts, as it has high-quality focus assist functions, including field check, image freeze, image flip, center marker, safety frame, and color temperature adjustment, assisting users to accurately monitor during filming, production, and film/video playback.
3 COLOR SIGNAL LIGHTS,
both front and rear.
There are front and rear signal lights with 3-color display (red, green and yellow), controlled through DB-9 doors on the rear panel.
Box Contents:
1x Monitor
1x Rack
