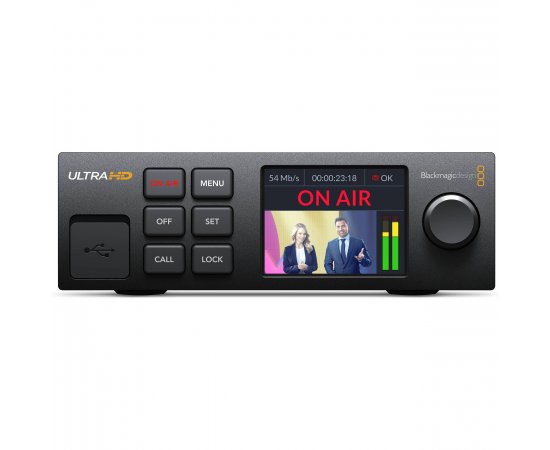

BLACKMAGIC DESIGN Web Presenter 4K

LIVE STREAM FROM ANY VIDEO SOURCE DIRECTLY FROM YOUTUBE, FACEBOOK, TWITTER AND MANY MORE!

Now you can live stream to the world!
Blackmagic Web Presenter 4K is an all-in-one streaming solution that includes a professional hardware streaming engine for direct Ethernet streaming to YouTube, Facebook, Twitter and more!
It's like a modern broadcast television transmitter for a new global streaming audience!
Plus, the built-in USB connections work like a webcam, so you can plug in a computer and use any streaming software, or even Skype or Zoom.
You can still stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data!
Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs, and even SDI technical data!

TWO MODELS AVAILABLE

BlackMagic Web Presenter HD
Standalone streaming solution with H.264 broadcast encoder, direct HD streaming to services like YouTube, USB webcam, 12G-SDI input with standards conversion, front panel with LCD, and more!
BlackMagic Web Presenter 4K
This model includes all the features of the Blackmagic Web Presenter HD model, however, it includes a more powerful codec so you can select to stream in 720p, 1080p HD or full resolution 2160p Ultra HD!

LIVE STREAM TO YOUTUBE, FACEBOOK AND MORE!

Blackmagic Web Presenter supports the most popular streaming platforms.
In addition, the built-in hardware streaming engine has been designed for live streaming with professional broadcast quality.
It's a great standalone solution for live streaming that works without any frame loss.
You just need to connect to the internet!
Setup is easy as the Web Presenter Utility software allows you to select the streaming platform and update the streaming key.
The utility works on both Mac and Windows and connects directly via USB or remotely via Ethernet.
If you're tech-savvy, you can even manually update the XML settings file to change specific settings or add new streaming platforms.

FACILITATE LIVE STREAMING

BlackMagic Web Presenter is the solution that includes a powerful hardware encoder, software to connect to streaming platforms and network connections. This means that you don't have to buy an expensive computer or use complicated streaming software.

Simply connect an SDI video source, such as a live production switcher or camera, and then connect to the Internet using the built-in Ethernet connection.
Or connect a mobile phone to use mobile data!
With settings built for popular streaming platforms, all you need to do is enter a streaming key and press "on air"!
You can even simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used!

CONNECT 5G OR 4G PHONES FOR MOBILE DATA
If you're streaming from a remote location, you usually need a backup for the main Ethernet connection, you can connect an Apple or Android phone to connect to the internetvia mobile data.
For convenience, there are USB connections on the front and back panel that can be used for tethering phones.
Plus, it works with the latest high-speed 5G phones as well as 4G phones!
Blackmagic Web Presenter automatically detects when a phone is connected and changes your Internet connection to use it.

INTEGRATED TECHNICAL MONITORING
Traditional broadcast transmitters are essential equipment in a television station; However, now the streaming server is equally critical because millions of viewers can watch globally!
To help, Blackmagic Web Presenter includes a feature-rich technical monitoring output.
The graph-based monitoring output includes a video display, ballistics accurate audio meters, trend graphs for codec data rates and cache fill, as well as a summary of streaming settings and detailed SDI technical information.
In addition, the technical monitoring output works in full 1080 HD and outputs to SDI and HDMI.
That means you can use an SDI router to monitor multiple units or connect a simple HDMI TV!

1. Streaming Status:
There's a large ON AIR indicator in the top left corner of the monitor output, so it's always clear when you're online and streaming!
In addition, all your current streaming settings are displayed clearly.

2. Video Input Status:
The technical details of the SDI input are displayed, such as video pattern and auxiliary data.
Bit activity indicators allow you to see the quality and bit depth of the video before H.264 encoding.

3. Audio Input Status:
Audio is de-embedded from the SDI input and the channel status is displayed. The bit activity indicator lets you check for 16-, 20-, or 24-bit audio. You can even see which audio channels are present!

4. Video and Audio History:
The audio and video technical views also include a 6-second history view so you can see the recent video input history. This ensures that you can instantly see what's going on.

5. Trend Charts:
The trend graphs below the video display allow you to see the last 60 seconds of the codec data rate and cache fill.
Also, the codec's data rate is critical to ensure you have enough internet speed from your ISP!

6. Video and Audio Meters:
A large area is dedicated to the video input display and the large multi-segment audio meter with accurate ballistics. You can even change the type of audio meter from VU, PPM and more!

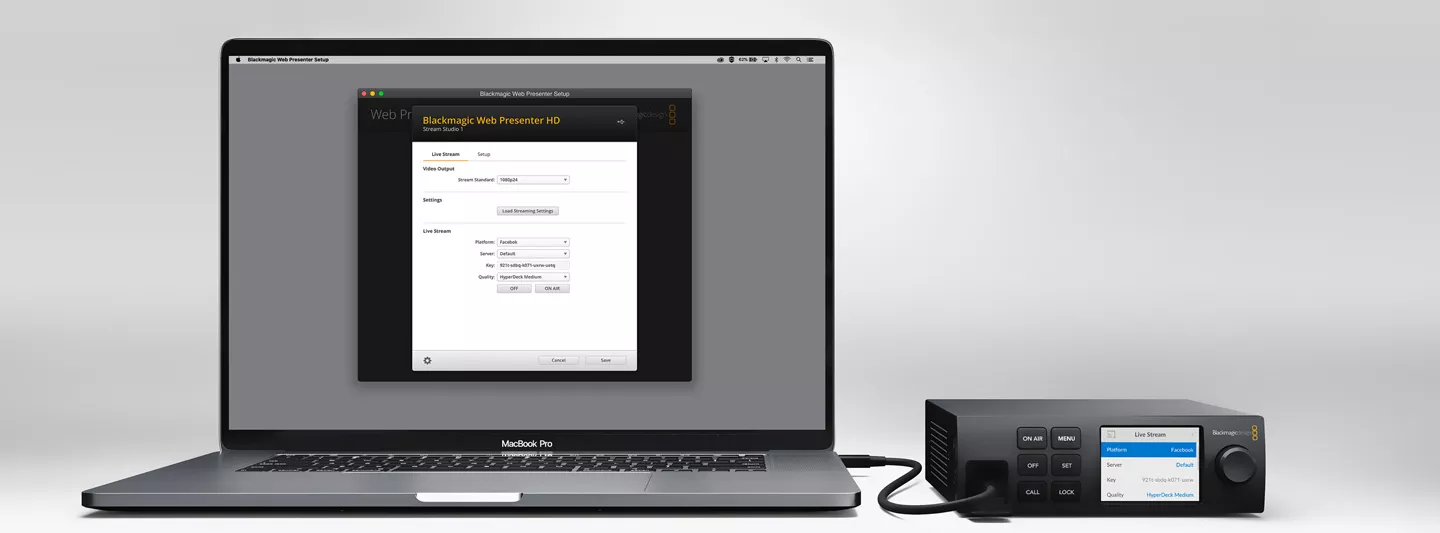

INCLUDES THE PRESENTER WEB UTILITY

Blackmagic Web Presenter Utility software provides a single place to manage multiple web presenters and update settings and software.
Simply plug directly in front of the web presenter's USB connection or connect using Ethernet so you can configure remotely, which is important when you're managing multiple remote sites.
The familiar menus and controls make it super easy to set up a live event, so you can get started quickly!
Plus, the front panel LCD menus have the same settings and controls!
You can even load additional services to ATEM Streaming Bridge.
Blackmagic Web Presenter Utility software is included free of charge and can run on both Mac and Windows platforms.

TRANSMISSION LINKS WITH ATEM STREAMING BRIDGE

While Blackmagic Web Presenter can send video to a wide range of streaming services, it can also be used as a private broadcast SDI video link between studios!
The ATEM Streaming Bridge is a video converter that allows you to take the H.264 stream from Blackmagic Web Presenter and then convert it back to SDI video. That means it allows you to send video between remote locations on your local Ethernet network or globally over the Internet!
All of this is possible due to the built-in H.264 hardware codec that decodes the Web Presenter stream.
Imagine setting up multiple television studios and using the ATEM Streaming Bridge and Web Presenter for video links between sites.

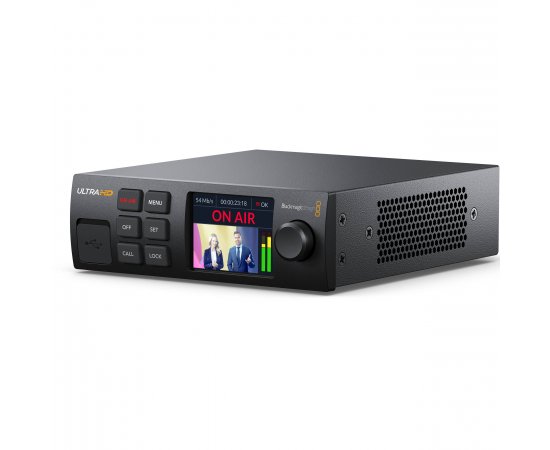

COMPACT DESIGN 1/3 RU

Blackmagic Web Presenter is based on the modular design of the Teranex Mini, allowing you to use it on a desktop or in a rack.

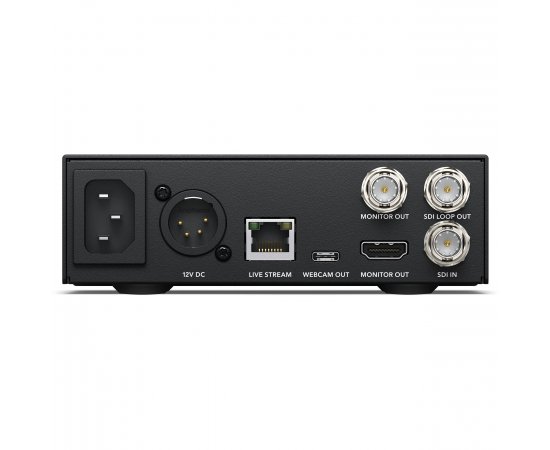

Includes a built-in AC power supply, plus a 4-pin 12V DC connection for backup power or battery operation.
The extremely portable design is only 5.5 inches wide, which means you can mount 3 on a single rack unit, perfect when you need to stream to multiple independent services all at the same time.

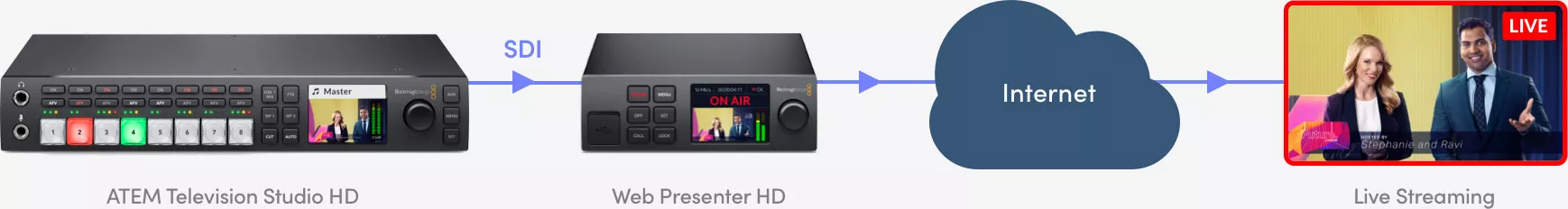

Plus, you can combine Blackmagic Web Presenter with other products like the ATEM Television Studio HD switcher for a live production and streaming solution in a single rack unit.
The front panel includes a USB connection, so you can connect a computer for quick local configuration changes.

Box Contents:
1x BLACKMAGIC Web Presenter 4k
