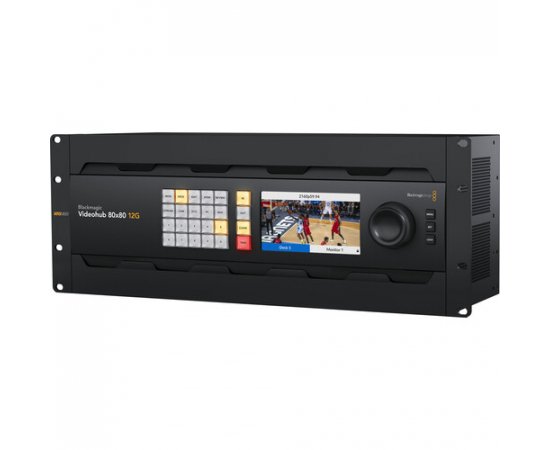

BLACKMAGIC Videohub 80x80 12G
Support a combination of multiple video formats using the BLACKMAGIC DESIGN Videohub 80x80 12G Video Router. This advanced router provides 80 12G-SDI inputs and 80 12G-SDI outputs for routing any combination of SG, HD, UHD 4K, and DCI 4K video. The Videohub 80x80 12G centralizes all your SDI cables in one hub, allowing you to connect any video input to any video output., or even a single video input to multiple video outputs, eliminating cable clumps and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors to all your broadcast platforms, or to add extra inputs to an ATEM switcher.
Multi-rate 12G-SDI connections
- Multi-rate 12G-SDI connections allow you to route up to 80 different video standards at the same time
- Supports video resolutions up to DCI 4K60
- Provides 8-bit or 10-bit 4:2:2 color routing in any standard
- Works with 12-bit 4:4:4 SDI up to DCI 4K30 for feature films
Reclocking SDI
- Relocking on each 12G-SDI input regenerates the signal, providing maximum video quality.
- Reduces or eliminates signal loss and jitter when using longer cables
Front Panel Controls
- A sleek front panel offers multiple control options
- Buttons include assignable shortcuts and IN, OUT, CLEAR, and TAKE buttons
- Machined metal rotary knob provides precise control using an electronic clutch
Optional hardware control panels
- Can be used with optional hardware panels for easy control when components are spaced apart in large installations
- Compatible with Videohub Master Control Pro and Videohub Smart Control Pro
Flexible control
Videohub Software Control compatible with Mac and Windows provides easy-to-use touchscreen router control
Integrated LCD
- See your live input before routing the signal on the built-in 5" LCD screen
- The bottom labels allow you to scroll through your fonts in alphabetical order
- Eliminates the need to add an external SDI monitor to your setup
Configuration Utility and SDK
Use Videohub Setup software to get started, or SDK to add protocol support for broadcast automation systems
Multi-language support
Personalized support is available at:
- English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, Ukrainian.
Features
- Zero-latency routing switcher
- Supports video up to DCI 4K60
- 80 12G-SDI inputs/80 12G-SDI outputs
- Combines SD, HD, UHD 4K and DCI 4K video
Box Contents:
1x Blackmagic Design Videohub 80x80 12G
1x Router Control Software
1x Built-in Software Update App
