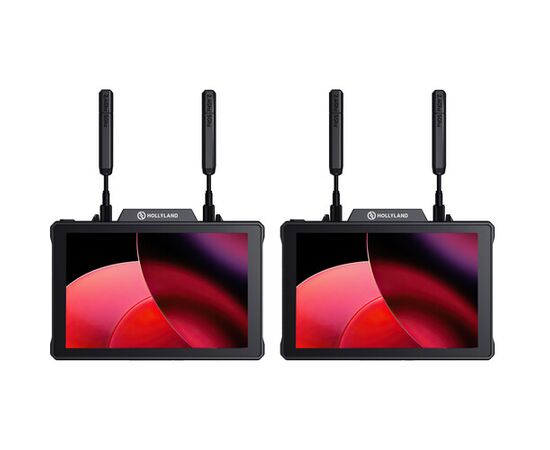

HOLLYLAND Pyro 7 3-in-1 Monitor - Dual Kit
HOLLYLAND Pyro 7 3-in-1 Monitor - Dual Kit
The Pyro 7 is a 7" wireless monitor that integrates transmitter, receiver and monitor features all in one. It uses Auto Dual-Band Hopping (ADH) technology. With a range of 400m and incredibly low latency of just 60ms. The Pyro 7 supports 2.4 GHz/5 GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design allows the Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable hotkeys. In addition, the upgraded HollyOS system offers enhanced image analysis functions and allows you to export video files via external SD card. The Pyro 7 is compatible with Pyro H and Pyro S, which means you can pair them easily. This provides greater flexibility and scalability to meet diverse monitoring needs.
4 receivers
The Pyro 7's WifiBroadcast technology allows one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs arise on set.
*When Broadcast mode is enabled, the transmitter can transmit signals to a maximum of four receivers. When Broadcast mode is disabled, the transmitter can transmit signals to up to two receivers and two mobile devices.
Real-time images
The Pyro 7 allows a seamless connection to the Pyro series video streaming solution after a preset grouping. You can quickly switch between dual camera views for monitoring in 1 second using two customizable buttons.
Faster. Greater reach. More powerful.
With self-developed 2.4 GHz and 5 GHz dual-band technology, the Pyro 7 offers a stable transmission range of up to 400 meters. Get a minimum transmission latency of 60ms, thanks to improved chips and optimized video encoding and decoding algorithms.
Double boost: Less latency and more stability
Compared to traditional video transmission systems whose range is extended to the detriment of image quality and latency, the Pyro 7 stands out for its longer transmission distance, preserving video quality and minimizing latency.
You can select these two modes based on your application needs:
- Soft Mode:
- The bitrate is dynamically adjusted in this mode to achieve the lowest latency of 60 ms for ultra-long-haul transmission.
- HD Mode:
- Ideal for superior image quality. HD mode ensures sharp images while maintaining a stable bitrate of 8 to 12 Mbps, even at a distance of 400m(*). When the transmission mode is enabled, the range of LOS reaches up to 200m. When bodo Broadcast is disabled, the LOS range extends up to 400m.
*Transmission range is the LOS (line of sight) range based on non-interference laboratory measurements.
Dual-band auto-hop (ADH)
Dual-band automatic hopping (ADH) With our dual-band automatic hopping (ADH) technology, the Pyro 7 operates in dual 2.4 GHz and 5 GHz bands and features intelligent automatic frequency hopping, so it can automatically choose the brightest channel. This feature ensures reliable and uninterrupted wireless video transmission.
Dual-band 2.4 GHz and 5 GHz
The Pyro 7 offers a dual-band transmission solution that solves common problems such as signal interference, low transmission efficiency, and frequency congestion. In addition, high-gain omnidirectional antennas ensure stable signals in all directions, which provides better signal transmission performance and efficiency. With the Pyro 7, you no longer have to worry about video drop issues.
Automatic frequency hopping
The Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly checks and monitors signal strength and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Accurate image analysis, enhanced experience
The Pyro 7 offers a convenient custom hotkey feature that can be used for dual-view monitoring and also to quickly launch waveforms, recording, focus assist, and other image analysis functions.
Expanded functionality, enhanced capabilities
The Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing convenient on-site monitoring and increased work efficiency. In addition, it gives you the option to apply LUTs during video export. In addition, Pyro 7 allows you to efficiently export and organize the available videos into specific folders, meeting your needs to streamline the editing workflow.
It also supports importing from external devices or screenshots on set, overlaying them on the current recording screen to restore or replicate scenes.
Ideal size
The 7-inch screen offers a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in bright sunlight or in low-light environments, you can adjust the screen brightness for optimal visual performance.
HDMI and SDI
The Pyro 7 is the perfect solution for professional filming and small commercial projects. The transmitter has an HDMI input, an SDI input, and an HDMI loop output, while the receiver provides an SDI output, an HDMI output, and an SDI loop output.
Intelligent Channel Search
On startup, the Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the start. Additionally, users can enable the smart channel scanning feature on the device to view real-time information about the frequency status, ensuring an uninterrupted and reliable experience.
Easy setup
The Pyro 7 supports preset grouping and pairing, saving users from having to repeatedly and manually configure the transmitter and receivers.
RTMP Streaming
With RTMP (Real-Time Messaging Protocol), simply enter your password and connect your wireless network card to easily stream video to popular live streaming or conferencing platforms such as Zoom, YouTube Live, Twitch, TikTok Live, and more. The Pyro 7 will offer a simple and convenient live streaming experience.
Lighter, stronger, stiffer
The Pyro 7 frame is made from an aerospace-grade magnesium-aluminum alloy, which is stronger, stiffer, 30% lighter, and dissipates heat better than models made with aluminum alone.
Key features
- Connect up to 4 receivers
- Latency of 1300 ft (400 m) and 0.06 s
- 2.4 GHz and 5 GHz dual-band
- Automatic frequency hopping
- TX, RX, and Monitor – All in One
- Dual View Quick Monitoring Switch
- 7-inch and 1200 nits
- Accurate image analysis (HollyOS icon)
- SDI and HDMI loop
- RTMP Streaming
What's in the box:
2x Pyro 7 3-in-1 Monitor
5x Antennas
2x D-Tap to DC Cable
2x USB-C OTG Adapter
1x 32GD Card
