HOLLYLAND Pyro 5 4K 3-in-1 Monitor
HOLLYLAND Pyro 5 4K 3-in-1 Monitor
The Hollyland Pyro 5 4K combines a brilliant camera monitor with a flexible wireless video transmitter and receiver in one compact unit. It's designed for productions where the cameraman, director, focus assist or client need a reliable live image, without the need to add separate monitor and broadcast hardware.
4K Streaming and 1500 Nits Display

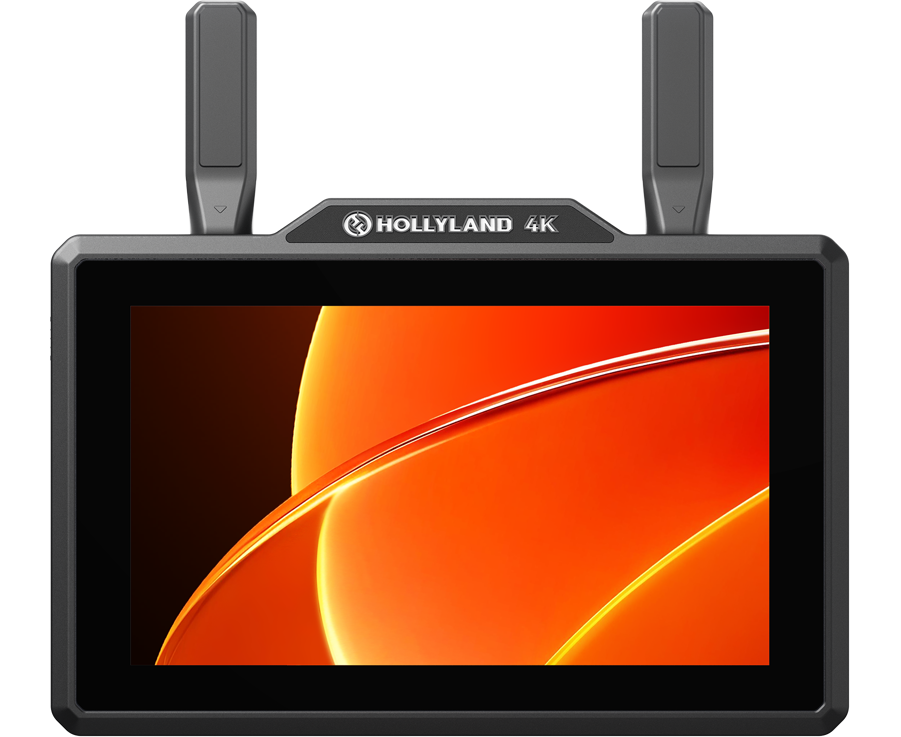

The upgraded Pyro 5 4K supports wireless video transmission up to 4K30 via HDMI, while the SDI connection supports up to 1080p60. Its 5.5" Full HD touchscreen offers 1500 nits brightness for reliable external monitoring, and the unit can be switched between transmitter and receiver modes as needed.
400 m Range and Low Latency
With a line-of-sight range of up to 400 m and a latency of just 60 ms, the Pyro 5 4K is a practical solution for shooting from compact single-camera setups to larger, multi-monitor productions. Hollyland's 2.4/5 GHz dual-band transmission, automatic frequency hopping, and intelligent channel scanning help maintain a stable signal in congested RF environments.
Pyro Ecosystem and Multi-Device Connections
The monitor is part of the Pyro ecosystem and can work with other Pyro devices. In Direct Mode, one transmitter can send signals to up to two receivers and two mobile devices. Broadcast Mode supports up to four receivers. The Lock Pairing feature keeps each receiver connected to its corresponding transmitter when multiple Pyro systems are used on the same set.
Camera Control and Monitoring Tools
The Pyro 5 4K also adds camera control for select Sony, Canon and Nikon cameras, enabling important settings such as ISO, aperture and shutter. Speed and white balance can be adjusted on the touchscreen with a compatible control cable. Image overlay makes it easy to match composition between shots, while built-in monitoring tools such as waveform, vectorscope, focus assist, false colour and support for custom LUTs provide the tools needed for accurate on-set monitoring.
Proxy Recording and RTMP Streaming
Record proxy images directly to an SD card or USB drive, stream via RTMP to compatible live streaming platforms, or use the customizable function buttons for quick access to the tools you use most.
Key features
- 5.5" Full HD touchscreen monitor with 1500 nits brightness
- Integrated wireless transmitter and receiver; selectable TX/RX operation
- Wireless streaming up to 4K30 via HDMI

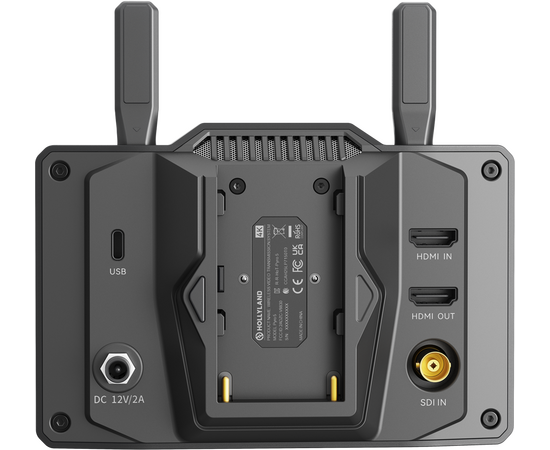

- HDMI input, HDMI loop-out output, and HDMI output
- 3G-SDI input; SDI supports up to 1080p60
- Transmission range up to 400 m in a straight line
- Low latency from 60ms
- 2.4GHz/5GHz dual-band transmission with automatic frequency hopping
- Direct Mode: up to 2 receivers + 2 mobile devices
- Broadcast Mode: Up to 4 receivers
- Compatible with the Hollyland Pyro ecosystem
- Camera control for selected Sony, Canon, and Nikon cameras
- Image overlay for framing adjustment between takes

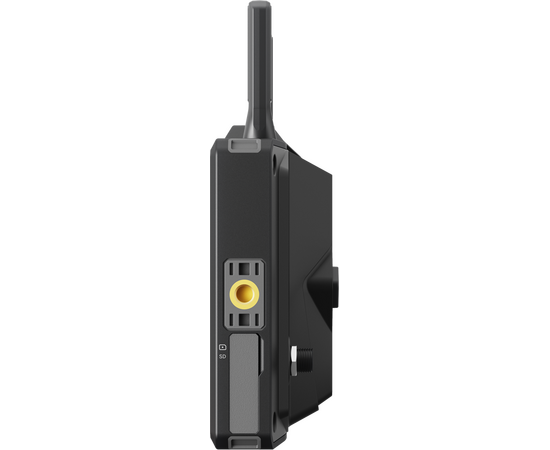

- Proxy recording to SD card or USB storage
- RTMP streaming support
- L-series battery board and USB-C/DC power options
- Professional monitoring tools, including waveform, vectorscope, focus assist, false color, and LUT support
What's in the box:
1x 3-in-1 4K Pyro 5 Monitor
2x Short antennas
1x USB-C OTG Adapter
1x USB-C to USB-C Cable
1x Swivel Cold Shoe Holder
1x Tempered Glass Screen Protector Film
