BLACKMAGIC Design MultiView 4 HD
Blackmagic Design MultiView 4 HD
Blackmagic MultiView 4 HD is a multiviewer that allows you to simultaneously monitor 4 completely independent SDI video sources on a single monitor!
You can monitor any combination of SD and HD formats and frame rates all at the same time.
Each view can display overlays with information such as custom labels, audio meters, and more.
MultiView 4 HD features SDI and HDMI outputs for monitoring on professional SDI monitors, projectors, or even large-screen televisions!
Connections

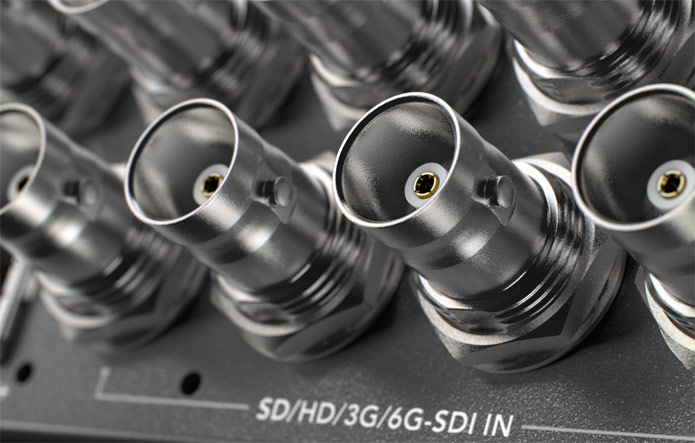

- SDI video inputs: 4 x 10-bit SD-SDI and HD-SDI.
•SDI video outputs: 1 x HD-SDI.
- SDI rates: 270Mb, 1.5G, 3G.
•SDI video multiview outputs: 1 x 10-bit HD-SDI.
-HDMI Multi View Video Outputs: 1 x HDMI Type-A connector. The output supports EDID from the monitor.
-SDI reclocking: On all SDI outputs, automatic switching between standard definition or high definition.
-Reference Input: None
-Multi-rate support: automatic detection of SD or HD.
•Upgrades: Hi-speed USB 2.0 interface (480Mb/s).
- Configuration: USB 2.0
All Blackmagic MultiView models work with HD monitors, while 6G-SDI models also work with Ultra HD monitors, so you get maximum compatibility with your existing equipment.
This means that you can use regular HD monitors, but you also have the option of using an Ultra HD monitor for incredible clarity!
Ultra HD has four times the number of pixels as regular HD, so your video looks sharper and clearer than ever!

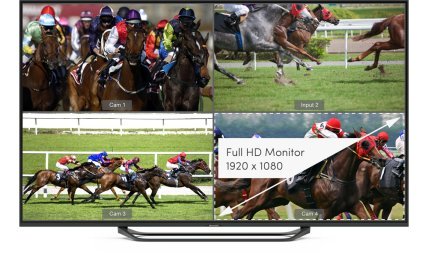

What this means is that when displaying the 2x2 view on an Ultra HD monitor, each view has a full HD resolution of 1920 x 1080 without scale!
MultiView includes SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors, and more!
Box Contents:
1x BLACKMAGIC Design MultiView 4 HD
