DJI Focus Pro Creator Combo
DJI Focus Pro Creator Combo
DJI's first independent Automated Manual Focus (AMF) lens control system, it provides filmmakers with a robust and comprehensive focusing solution, ushering in a new era in human-machine collaborative focus control.

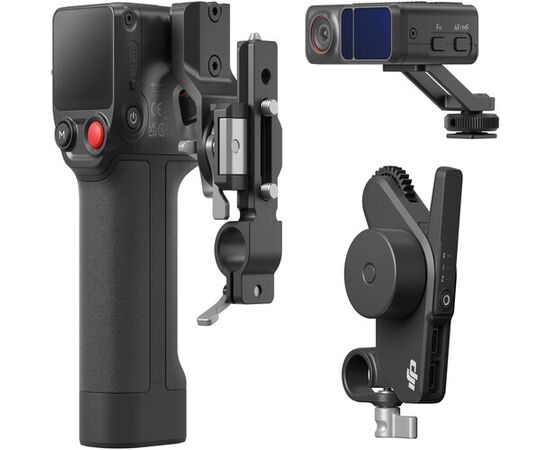

DJI's Focus Pro Creator Combo equips your gimball with all the tools you need to achieve precise FIZ control in single-shot setups. The combination includes a DJI Focus Pro LiDar unit , DJI Focus Pro Motor , and a DJI Focus Pro Grip for more accurate, far-flung and intelligent autofocus.
DJI Focus Pro LiDAR
The DJI Focus Pro LiDAR unit, designed for the RS 3 Pro and RS 4 Pro gimbal stabilizers, makes achieving intelligent autofocus intuitive and easy for video photographers. The rangefinder unit makes it easy to focus on moving subjects, thanks to its 76,800 expanded range points, 30Hz refresh rate and 20m maximum detection area. It also allows it to support wide-angle and telephoto lens configurations.
The unit features an integrated camera with a focal length equivalent to 30mm and a 70° field of view to ensure precise focusing. Switch between wide-angle, telephoto, and focus point modes, depending on the needs of your shot. ActiveTrack Pro activates when paired with the RS 4 Pro gimbal for better recognition and tracking performance with multiple subjects or at a distance.
It is compatible with the Focus Pro Motor to provide accurate cinematic-style autofocus. The LiDAR unit mounts to the RS 3 or 4 Pro series gimbal or camera via the cold shoe or 1/4" thread and is powered by a USB-C power cable.
Auto
When combined with the Focus Pro Motor, the LiDAR unit can facilitate autofocus with compatible lenses. The unit's 76,800 reach points can project within an area of 0.5m to 20m. It also has a built-in camera with a 30mm equivalent focal length and a wide 70° FOV, meeting the focusing needs of most scenarios.
Updated AutoTrack Pro
The next-generation ActiveTrack Pro can read images directly from the camera built into the Focus Pro LiDAR autofocus without the need for the Ronin image transmitter. By using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 4 Pro's OLED touchscreen. Even if the target is briefly obscured, the LiDAR unit can quickly reposition itself and maintain focus.
Intuitive modes
- Tracking: Recognizes up to five subjects at once and selects one to follow
- Intelligent Object Identification: humans and vehicles
- Flex Spot: activate focus lock by framing the subject and pressing the gimbal trigger; Only supports autofocus
- Wide: automatically detects the subject and follows the focus; Supports autofocus and ActiveTrack
Connecting with DJI Focus Pro Motor
Use the USB-C data port to connect the LiDAR unit to the Focus Pro Motor for cinematic autofocus capability after calibration. Press the M button on the gimbal to switch between manual and autofocus with ease.
DJI Focus Pro Grip
Attach the Focus Pro Grip to either side of your DJI R3 Pro or RS 4 Pro gimbal, and control the Focus Pro Motor setting for accurate FIZ. The grip features a built-in 1.8" touchscreen, front dial, mode button, and record buttons for intuitive control over camera and lens operations. Toggle AM/AF mode to activate autofocus, causing the front dial to rotate simultaneously, allowing you to observe the focus state on the monitor and control by haptic feedback. Manual mode can then be intuitively activated and deactivated.
Three USB-C ports make it easy to communicate between the Focus Pro LiDAR unit, Focus Pro Motor and your camera. 2.4 GHz and Bluetooth communication enables wireless transmission. Use the integrated NATO clamp and included adapters to attach the grip to either side of your gimbal setup. A built-in battery keeps it running for about 2.5 hours. It can be recharged by USB-C, supporting fast charging.
DJI Focus Pro Motor
Add focus, iris, or zoom control to your camera when mounted on the RS gimbal stabilizers compatible with the DJI Focus Pro Motor. This upgraded motor features a 30% speed increase over the previous model, with 300 gear teeth and low latency of 10ms. Control the motor via 2.4GHz transmission technology up to 160m away.
When used in zoom control mode, the Focus Pro can perform Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for precise focus. The upgraded 15mm tube mount makes it more universally compatible with camera mount configurations. Combine two Focus Pro Motors with DJI RS 4 Pro to adjust focus with the gimbal's built-in dial and zoom with the built-in joystick for efficient lens control.
Compatibility
- DJI RS 3 Pro, RS 4 Pro
- DJI RS 3, RS 4
- DJI Ronin 4D Flex
- DJI Focus Pro Grip, Focus Pro Hand Unit
What's in the box:
1x Focus Pro LiDAR:
1x USB-C Multi-Camera Cable (30cm)
1x DJI Focus Pro Grip:
1x BG21 Battery Grip
1x NATO Mount Adapter
1x Side rail rod adapter
1x Horizontal Side Rail Adapter
1x USB-C Charging Cable (40cm)
1x M4 Screw
1x 1/4"-20 Screw
1x Focus Pro Motor:
1x Rod Mounting Kit
1x Focus Gear Strip
1x USB-C Multi-Camera Cable (30cm)
1x 15mm Rod
1x 1/4"-20 Screw
1x Carrying case
