SMALLRIG 4983B L-Bracket Canon R5 II
SMALLRIG 4983B L-Bracket Canon R5 II

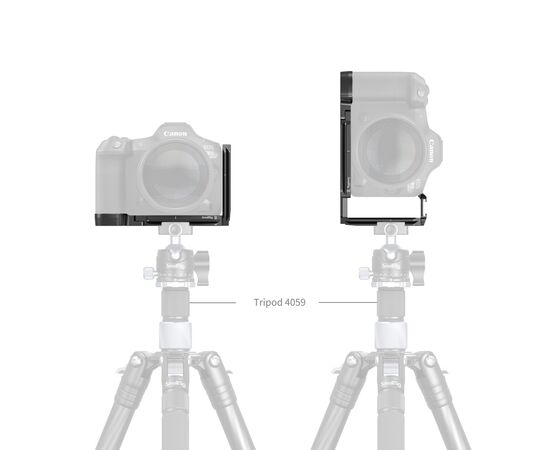

The SmallRig L-Shaped Mount Plate for Canon EOS R5 Mark II (model 4983B) is designed to assist in quick switching between landscape and portrait orientations, as well as improving the grip of the camera body. The L-shaped mounting plate attaches securely to the camera with a 1/4"-20 screw at the base and two locating blocks on the sides to prevent drift, plus built-in silicone pads to protect the camera from scratches.

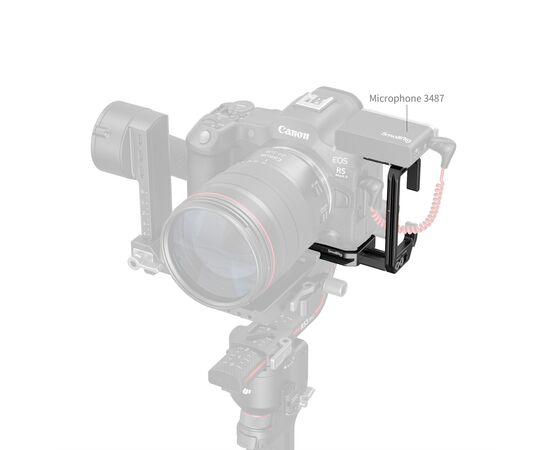

In vertical shooting situations, the included location block, with cold shoe mount, stabilizes the center of the frame, preventing image shift due to side panel deformation. This location block is compatible with a variety of cold shoe accessories, such as microphones, video lights, transmitters, and flashes, allowing you to shoot or shoot with light equipment.
The side panel can be extended by 22.5mm, making it easier to manage cables when shooting vertically, and adjusted forward and backward by 7.8mm. without obstructing the camera's HDMI, microphone, and other interfaces.
The side panel design allows the screen to rotate approximately 100° back and forth. Both the base plate and side panel do not obstruct the camera's button interfaces, such as the battery compartment and card slot.

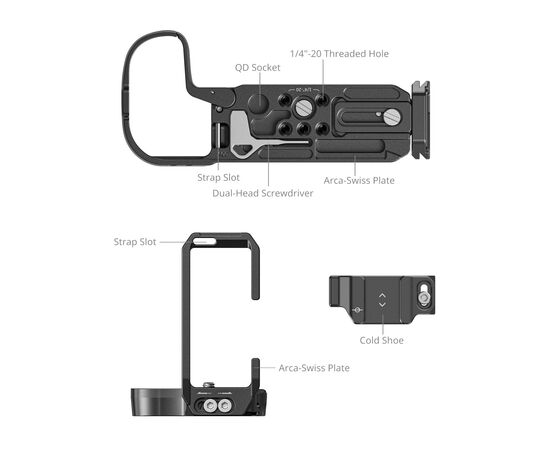

The mounting plate features multiple expansion interfaces, including 1/4"-20 threaded holes, QD interface, cold shoe fittings, and handle slots, allowing for the attachment of accessories such as QD shoulder strap, microphone, and tripods, catering to various shooting scenarios.
The Arca-Swiss quick-release base allows direct mounting on Ark-type tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilizers, enabling quick transitions between gimbal configurations In addition, the cage incorporates a double-headed magnetic wrench at the bottom for easy assembly and disassembly.
- Arca-Swiss quick-release plates integrated into the base and side panels, allowing for quick transitions between landscape and portrait shooting orientations
- It incorporates a three-point locking system for stability and accuracy, utilizing a 1/4"-20 screw in the base and two locating blocks
- Equipped with a cold shoe location block to maintain stability and prevent deformation of the side panel during vertical shooting, ensuring a centered and stable framing
- The side panel can extend by 22.5mm and adjust forward and backward by 7.8mm, without obstructing the camera interfaces and making it easier to connect cables for vertical shooting
- The built-in Arca-Swiss quick-release baseplate is compatible with Ark-type tripods and DJI RS 2/RSC 2/RS 3/RS 3 Pro/RS 4/RS 4 Pro stabilizers
- Enhanced versatility with multiple interfaces
- features a variety of expansion interfaces, including 1/4"-20 threaded holes, QD interface, cold shoe mount, and handle slots, serving a variety of shooting scenarios
What's in the box:
1x Canon R5 II L-Bracket
1x Location Block with Brake Shoe Bracket
1x Allen Key
