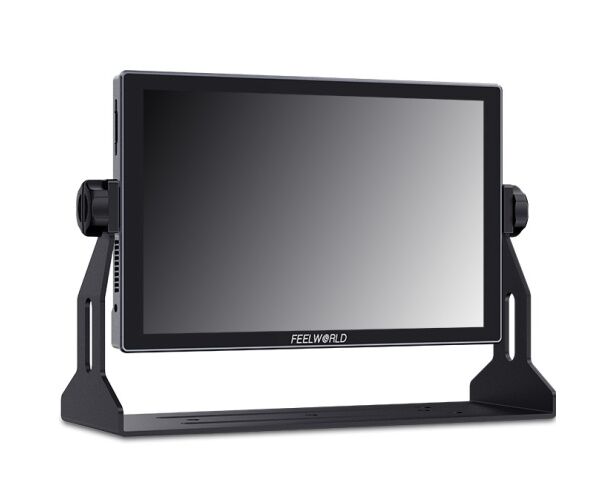

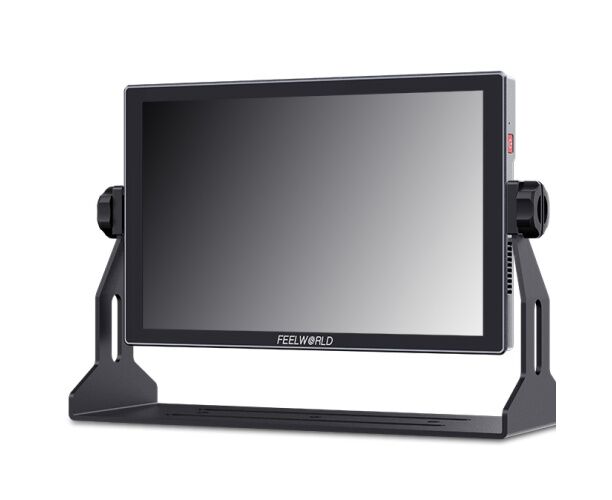

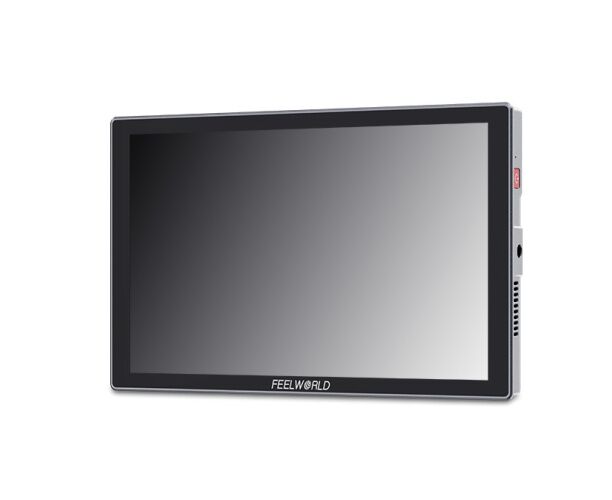

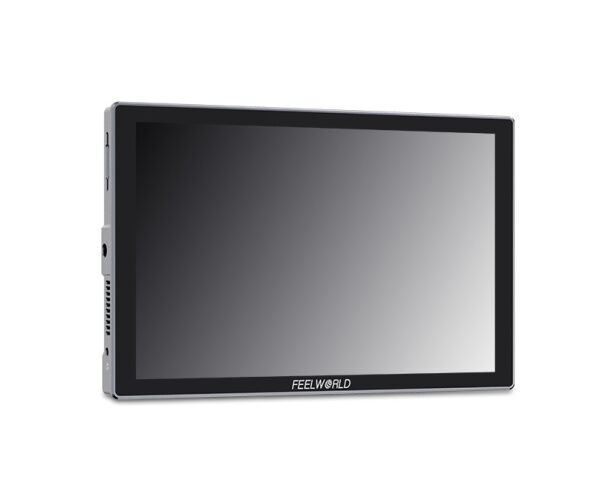

FEELWORLD Monitor S10 (12G-SDI)
Perfect 4K monitoring
S10 is a larger-sized 12G-SDI monitor that FEELWORLD continues to release. It's an ideal choice for on-location 4K footage, large-scale presentations, live events, TV shows, and more.
High-speed 12G-SDI transmission
Adopting 12G-SDI single-link technology and 6G-SDI/3G-SDI/HD-SDI/SD-SDI compatibility, supporting 12Gbps per second transmission rate, better meeting the needs of high-definition and high-frame rate video transmission.
Professional broadcast quality
The S10 can not only handle monitoring all your SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI sources, but also simultaneously loop high-quality broadcast video footage, providing you with the perfect future-proof monitoring solution and bringing you the best possible quality and a fluid and smooth viewing experience!
10-inch Full HD display
Clearly checking and capturing every nuance
With extremely high resolution 10.1-inch IPS panel, a wider field of view, and presents more detailed images clearly. 1.07B color provides a richer color gamut. 160° wide viewing angle, support multiple members to monitor the image from all angles, facilitates team collaboration for film production.
CalMAN Professional Software Calibration, DCI-P3 Cinema Color Gamut
Each monitor undergoes color calibration through CALMAN professional software before leaving the factory, ensuring color accuracy and good reproduction, and the delta E value ≤1.5 Plus, S10 also covers 95% of the DCI-P3 movie-quality color gamut, better meeting the visual experience.
1200nits, visible in sunlight
The 1200nit high brightness is visible in almost all types of light. Indoors, outdoors, or anywhere you need it.
Robust aluminium housing
It adopts CNC aluminum housing, durable and portable, suitable for various shooting environments.
Custom hotkeys
On the top of the S10 comes with three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting location, and quickly access the necessary functions during the shooting process, greatly improving the efficiency of photography.
Sensitive touch screen control
The innovative LCD user interface with touch screen gives you incredible control. You can use simple tap-and-swipe gestures for the all-important button-free monitoring functions. In addition, you can also operate via the scroll key.
Load custom 3D LUTs , Preview how footage will look in field footage
Support for loading 32 custom LUTs
The LUT loading function makes color calibration easier and more intuitive, optimizes workflow, and improves work efficiency in the early stages of photography. You can use the built-in LOG or upload .cube files. The S10 allows you to internally load up to 32 custom LUTs, looks, or profiles at any time via the SD card slot and instantly select between them, always maintaining creative intent.
3D LUT Loop
HDMI and 3G-SDI can output video or image with 3D LUT effect. When live streaming, you can connect the S10 output as a live streaming image to add a cinematic effect; when shooting on set, you can send the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
Note: To use HDMI with LUT output, you need to set the HDMI output to "display" (enter the main menu - System - Source - Output Source - HDMI OUT - Display)
HDR monitoring
What you see is what you get
When HDR is enabled, the display reproduces a greater dynamic range of brightness, allowing brighter and darker details to be displayed more clearly, better reflecting visual effects in the real environment. HLG1, HLG2, HLG3 integrated three types.

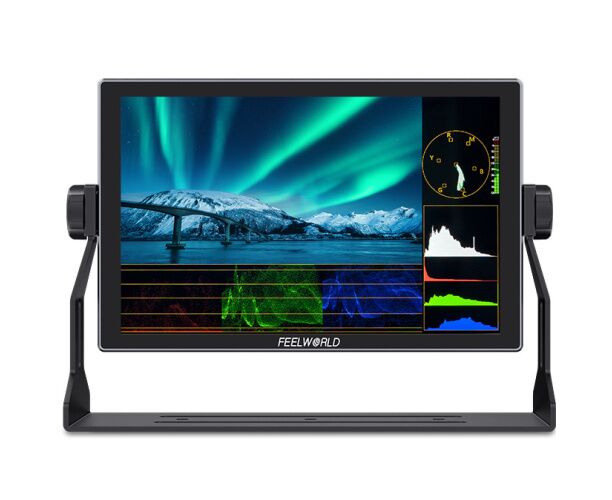

Precise waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get accurate broadcast waveform monitoring that shows you everything you need to know technically about your video and audio signals. The functions can be opened separately and also support one key to open all scope modes. The S10 becomes the ideal choice for live production monitoring, so you no longer have to use separate expensive oscilloscopes!
Audio meter level up to 16 channels
The S10 can de-embed audio from SDI and HDMI. In HDMI, you can select 2-channel, 4-channel, 8-channel audio meters display; In SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels of audio meters display. You can also move it to a horizontal or vertical position and don't worry about covering the image.
HDMI 12G-SDI and 4K input and output
Equipped with 12G-SDI and 4K HDMI inputs and outputs, it supports signal up to 4096x2160 60/3840p and 2160x60 10/3p, compatible with professional camcorders and the latest DSLR cameras on the market. In addition, the S3.5 also comes with a XNUMXG-SDI output and provides a XNUMXMM headphone jack for monitoring audio.
HDMI and SDI cross-conversion, easy to handle in a variety of applications
The built-in S10 signal cross-conversion allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can convert signals easily and you don't need additional converters. It can be used for various broadcasts and live productions.
Note: To use signal cross-conversion, set HDMI OUT to "Display" (enter the main menu – System – Source – Output Source – HDMI OUT – Display)
3 color TALLY light, improve team cooperation
S10 including signal light, can display red, green or yellow signal signal. This means that during live production you'll always know when you're recording or on air, or you can see which camera is selected in your switcher's preview output. The Tally is connected via an industry-standard parallel pin connector on the rear panel.
Built-in refrigerator
Built-in cooler, don't worry, the monitor works for a long time.
Flexible power supply, long-lasting power for shooting
You can connect the DC power input to achieve continuous power (suitable for 5.5*2.1mm DC power plug) or use the standard F970 dual battery board to install NP-F series batteries for mobile applications. An installed F970 (6600 mAh) battery lasts about 2 hours. The upper right corner of the monitor will display the battery level after installation. If two batteries are installed simultaneously, when one is running low, you can quickly switch to the other without worrying about power loss. The V-mount battery plate is optional (if you wish to add a V-mount battery plate, you can choose to purchase the product with the V-mount battery plate).
Note: the battery not included, please purchase separately. Greater capacity (working time) will be May.
11 supported languages
S10 integrated in up to 11 languages, which means the S10 is perfect for doing international localization work with different teams, as you can simply go to the menu and change the language whenever you need to!
Multiple mounting points, meet different monitoring needs

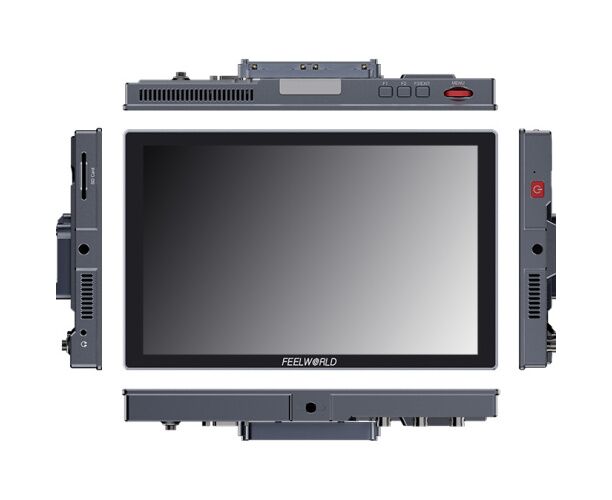

The monitor is equipped with 3 standard 1/4" mounting threads (bottom, right side, left side), you can easily mount it on the camera or other type of equipment with magic arm, bracket, etc.. Get to know the different monitoring for photographer or director.
What's in the box:
1x FEELWORLD Monitor S10 (12G-SDI)
