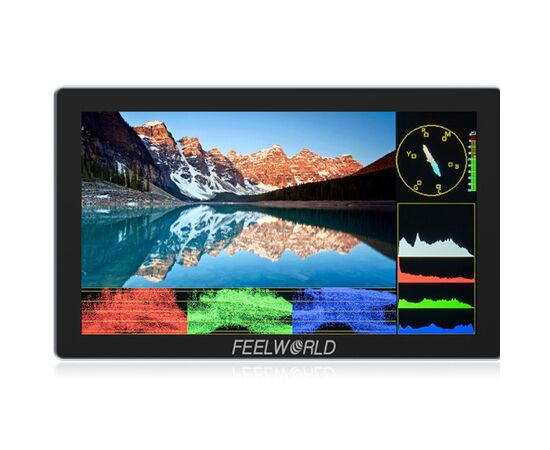

FEELWORLD Monitor P6X
Exquisite. Lightweight. Almighty
FEELWORLD P6X has up to 4K 60Hz HDMI transmission rate allows you to experience the smoothness of high-speed transmission;
5.5 inch high-brightness touch screen, makes filming more efficient; all-metal body, sturdy and durable;
A host of camera assist functions help photographers compose on location and save post-production time.
P6X is perfect for video creators.
Robust aluminium housing
It adopts CNC aluminum housing, unit weight only 249g, durable and portable, suitable for various shooting environments.

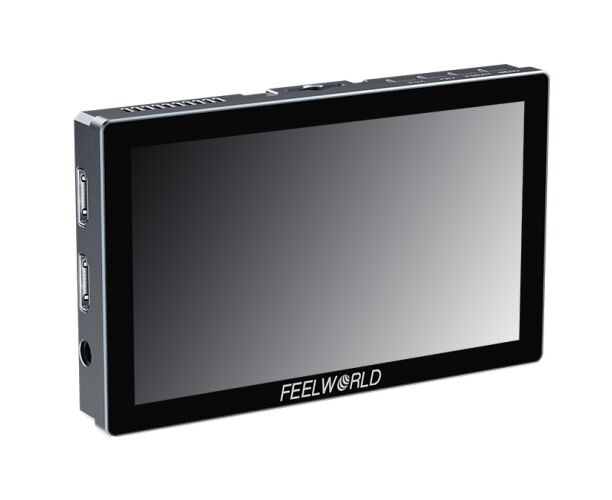

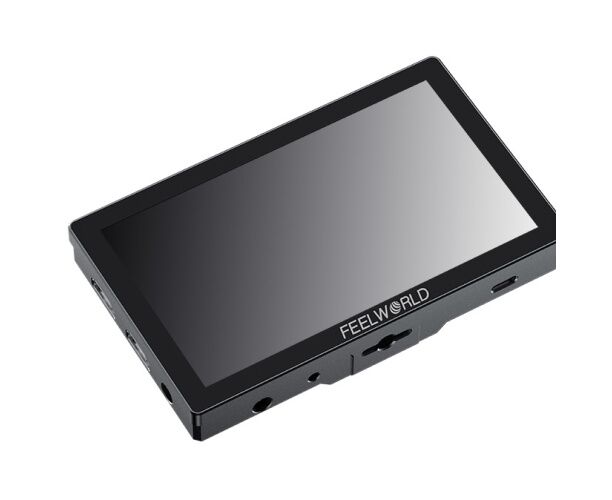

5.5-inch Full HD display
Clearly checking and capturing every nuance
With extremely high resolution 5.5-inch IPS panel, it provides excellent details, accurately reflects the original colors.
1000Nit, visible in daylight
The 1000nit high brightness is visible in almost all types of light. Indoors, outdoors, or anywhere you need it.
Sensitive touch screen control
The innovative LCD user interface with touch screen gives you incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
Button operation, more selection
Except for touch control, the P6X also provides button operation. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting location, and quickly call up the necessary functions during the shooting process, greatly improving the shooting efficiency.
Vertical 9:16 screen marker
The P6X has many types of aspect ratio markers, especially the 9:16 vertical screen marker. Perfect for vertical screen platforms such as Tik tok, instagram.
Switching Menu Users
The P6X provides 4 groups of menu configuration to save. You can select 1~4 groups after setting the menu, it will save automatically and can be called directly or switched next time.
Load custom 3D LUTs , Preview how footage will look in field footage
Supports uploading 32 custom LUTs
3D-LUT is a table for quickly searching and generating color-specific data. By loading different 3D-LUT tables, it can quickly recombine color tones to form different color styles. 4 built-in DE-log LUT, you can also load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver into the standard Type-C to USB accessory adapter and connect with the Type-C interface of the P6X.
HDR monitoring
What you see is what you get
When HDR is enabled, the display reproduces a greater dynamic range of brightness, allowing brighter and darker details to be displayed more clearly, better reflecting visual effects in the real environment. HLG1, HLG2, HLG3 integrated three types.
Precise waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows you everything you need to know technically about your video and audio signals. The functions can be opened separately and also support one key to open all scope modes. When the function is activated separately, you can also move it to the horizontal or vertical position in the Menu. The P6X becomes the ideal choice for live production monitoring, so you no longer need to use separate expensive scopes!

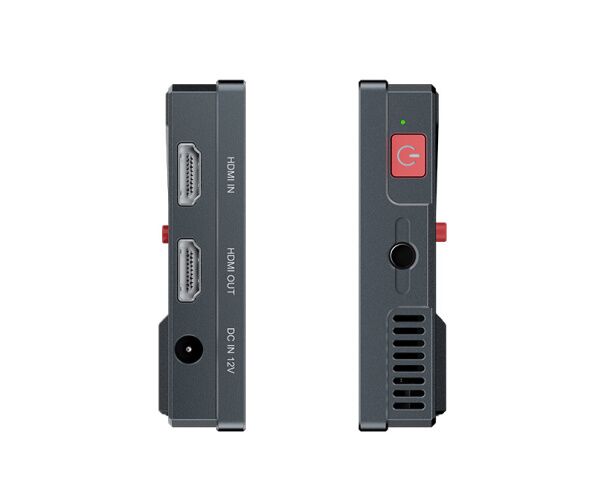

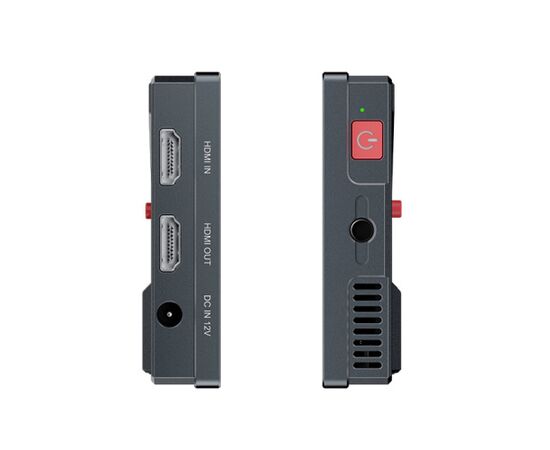

4K HDMI input and output, high-speed transmission
Equipped with 4K HDMI input and output, it supports signal up to 4096x2160 60/3840p and 2160x60 3.5/XNUMXp, compatible with the latest DSLR cameras on the market. And it provides a XNUMX mm headphone jack for monitoring audio.

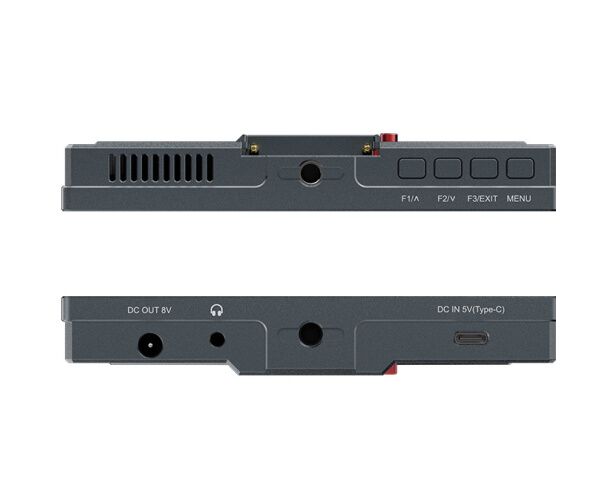

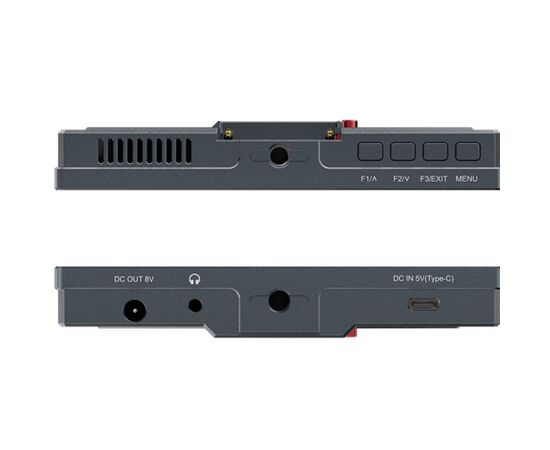

DC 8V output, power your DSLR or mirrorless camera
The P6X provides DC 8V auxiliary power output (DC 5.5*2.1mm power plug suitable), allowing photographers to power their cameras. With a battery adapter cable (optional), the P6X extends the camera's runtime, while providing a more usable display.

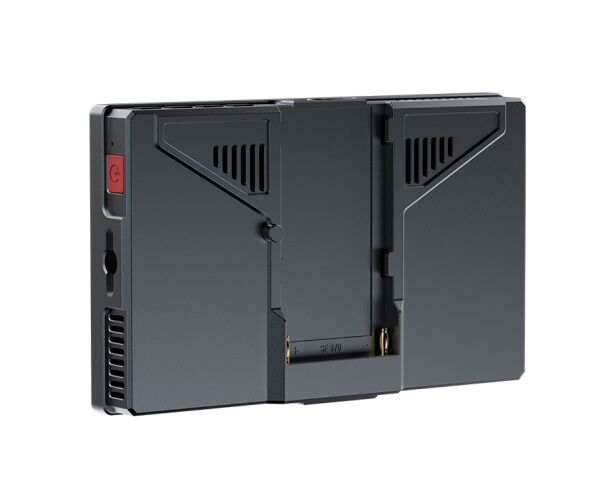

Multiple power supply, long-lasting power for shooting
You can connect to the DC power input to get continuous power (suitable for use with 1.5A power adapter, DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install the NP-F series battery for mobile application. Install an F750 (4400mah) battery that lasts for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5 V/2 A).
Note: the battery excluding, buy separately.
Optional NP-F battery recommendation
The power consumption of the P6X is 10W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your photography needs.
11 supported languages
The P6X has up to 11 built-in languages, which means it's perfect for doing work on international locations with different teams, as you can simply go to the menu and change the language whenever you need to!
Multiple mounting points, meet different monitoring needs
The monitor is equipped with 3 standard 1/4" mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, stand, etc. Get to know the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can be quickly released and connected to the camera monitor, LED light, flash, microphone, etc. Top with 180° viewing angle and base with 360° rotation.
What's in the box:
1x P6X Monitor
1x AA HDMI Cable
1x Mini HDMI Cable
1x Mini Shoe Holder + Hex Wrench
1x Type-C to USB
1x Lens hood + Frame
1x Manual
