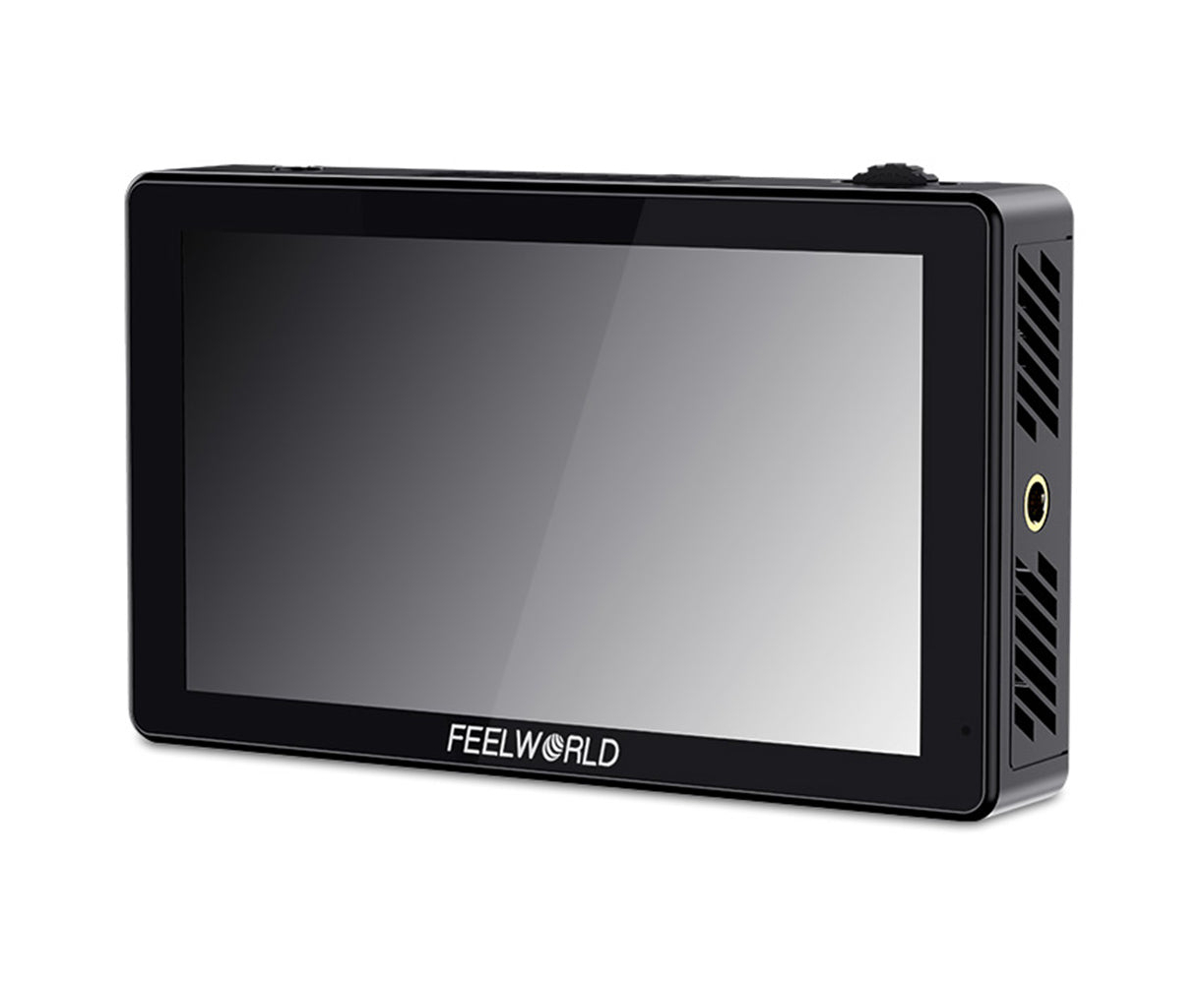

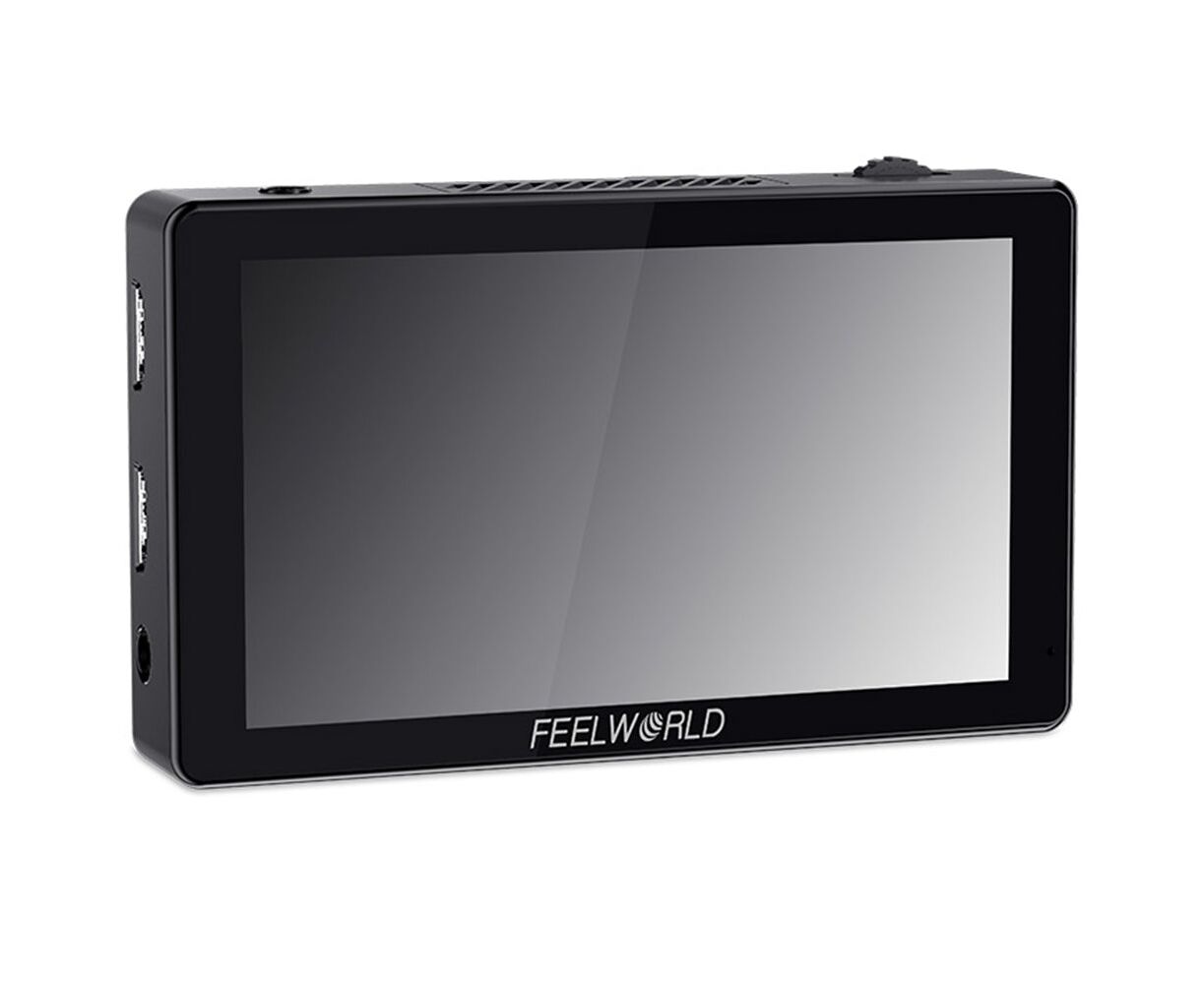

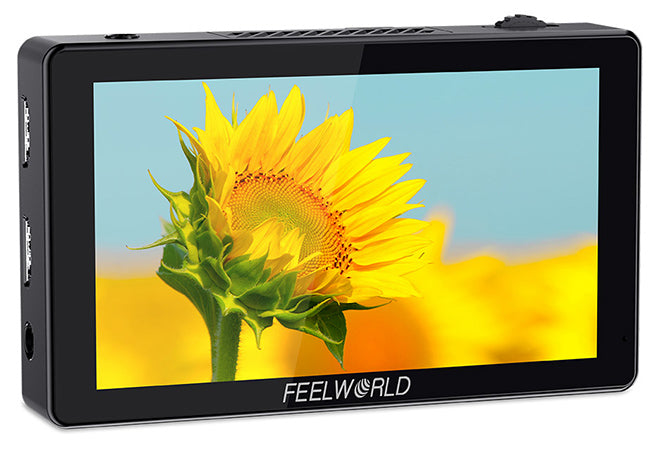

FEELWORLD Monitor LUT5 4K 5.5"
VISIBLE IN DAYLIGHT, FLEXIBLE MOBILITY ON SET
FEELWORLD LUT5 is a 5.5 inch ultra-high brightness in-camera monitor, with 3000nit ultra-high brightness, the screen is clearly visible in the sun.

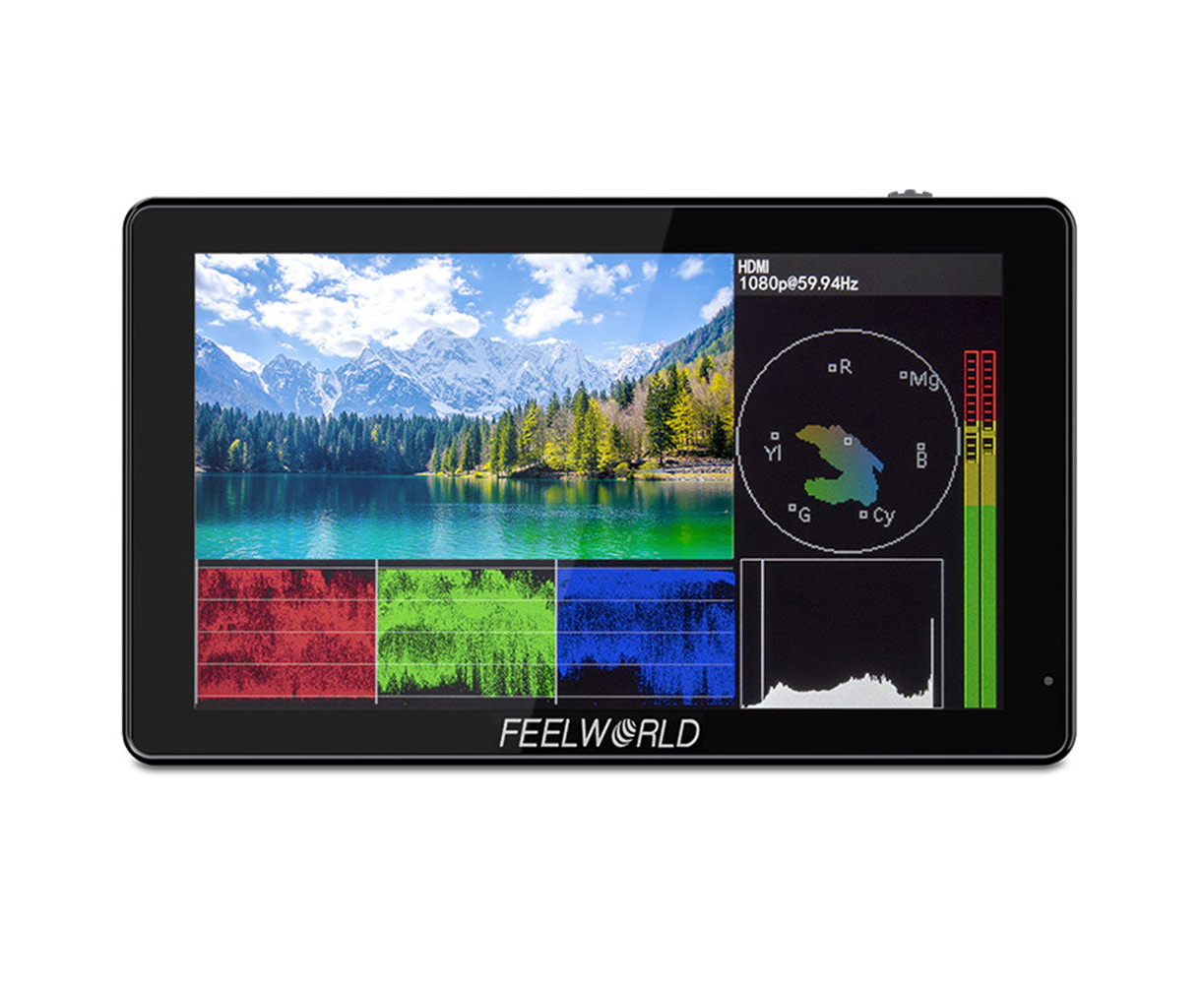

Full HD LCD touch screen, easy to operate; supports 4K HDMI signal at 30Hz, HDR monitoring, custom 3D LUT, and other professional auxiliary compositing tools.
There is an F970 outdoor installation and power kit on the back of the LUT5, which can be installed as wireless transmission, LED light, etc.

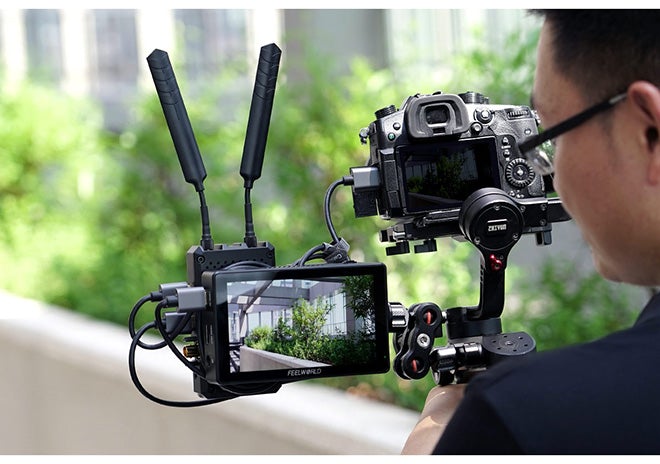

It combines the monitor with wireless transmission to get rid of unnecessary cables, which is perfect for the director's monitoring, 1st AC to focus attracting the film crew.

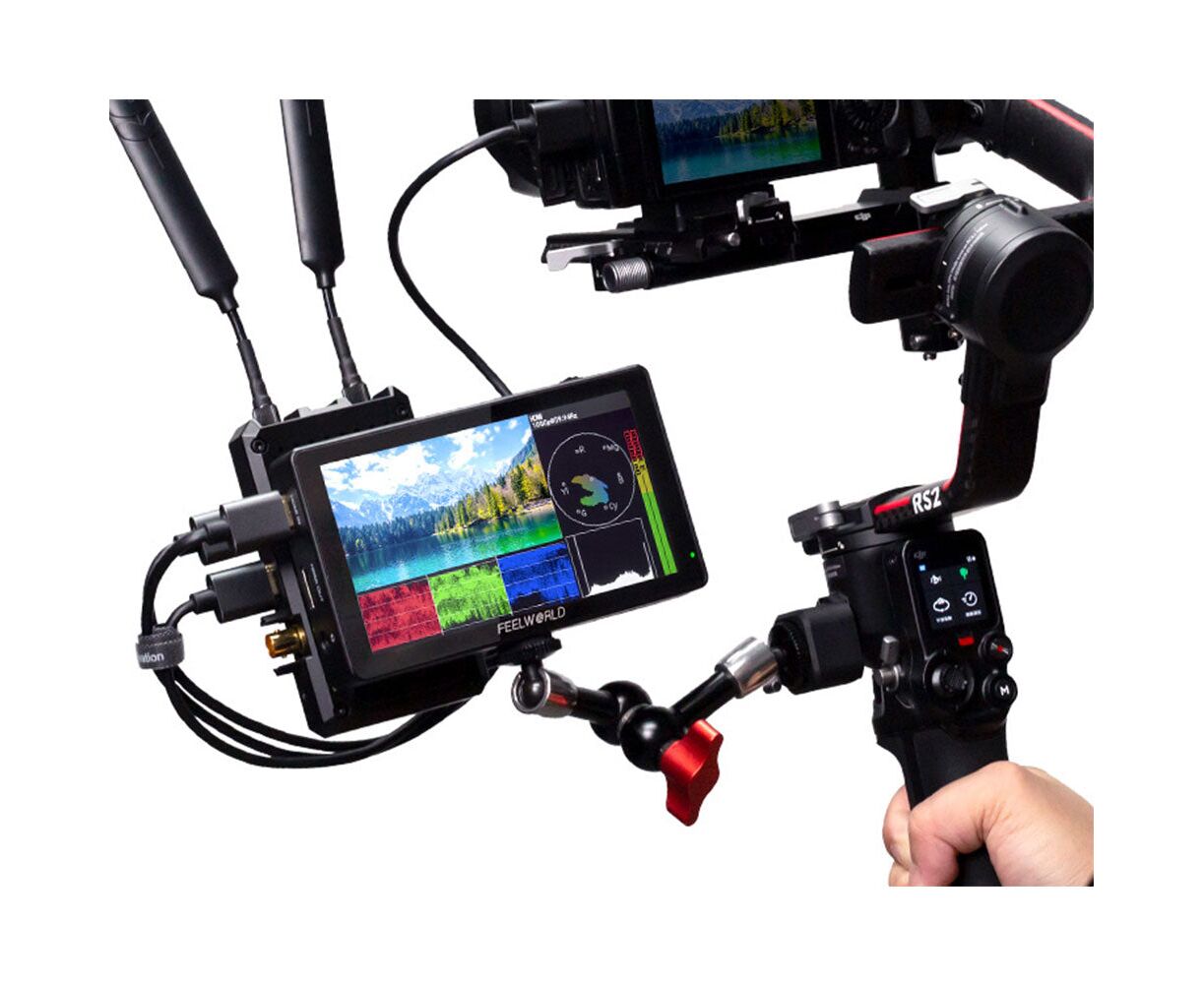

The compact and lightweight size can be used with a gimbal to move quickly on set.
COMPACT AND LIGHTWEIGHT
The compact and lightweight size of the LUT5 is suitable for use with a gimbal that can move quickly on set.

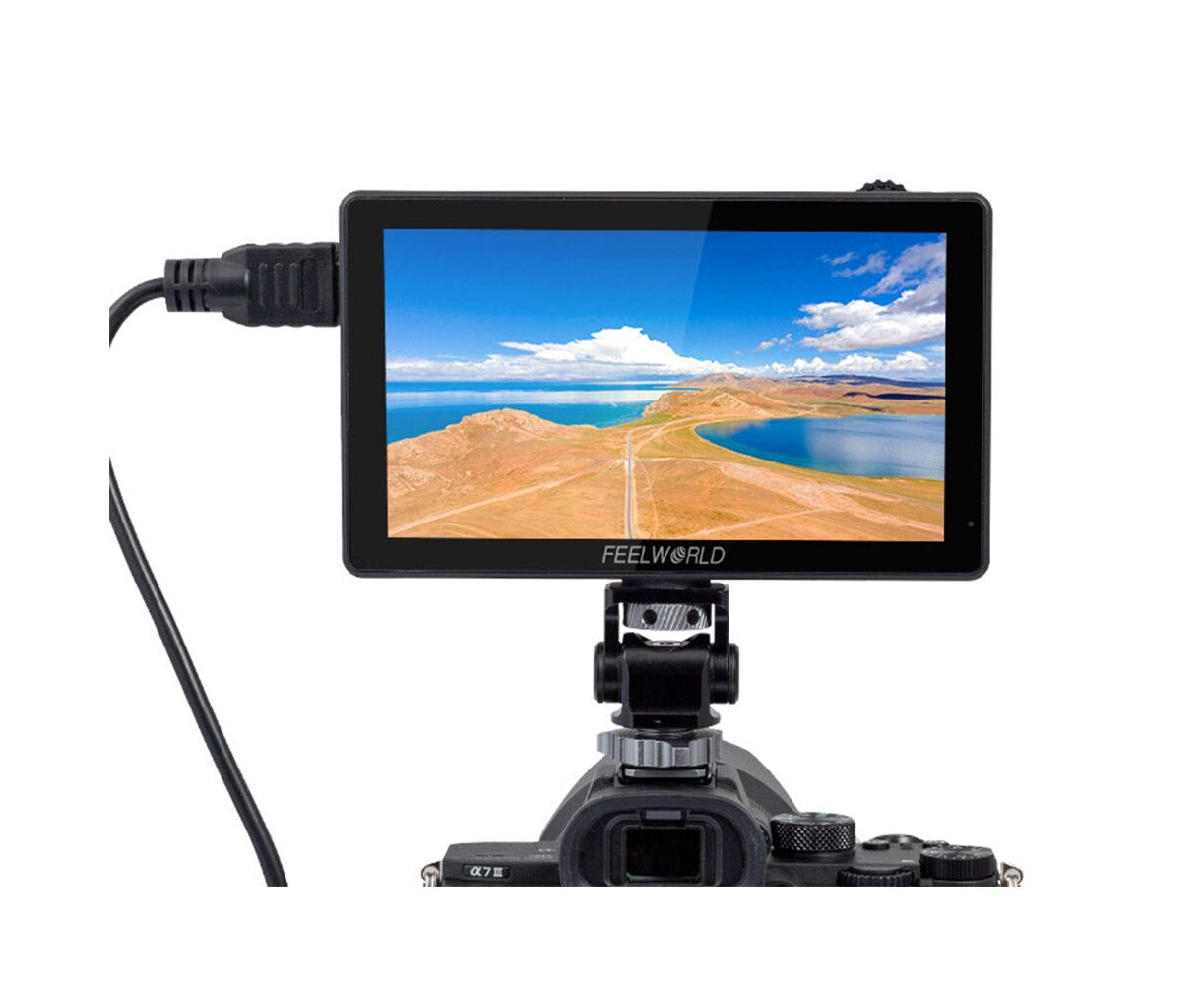

5.5" FULL HD LCD RESOLUTION
Visualize clearly and capture every detail with confidence.
The LUT5 comes with a 5.5x1920 inch full HD 1080 panel, it displays your photos and monitoring content with superior color fidelity. Ultra-high brightness of 3000nits, 1000:1 contrast ratio, and sRGB/Rec.709 Color Gamut, resulting in exceptional screen clarity even in bright lighting conditions. With the monitor displaying your content at 368 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on set. The wide 160º viewing angle makes it easy for multiple crew members to watch you at the same time.
3000nit VISIBLE IN DAYLIGHT. IDEAL FOR OUTDOOR PHOTOGRAPHY
With the support of 3000 nits of ultra-high brightness, LUT5 is not afraid of bright light.
And the outdoor shooting screen is clearly visible, you can shoot without a sunshade.

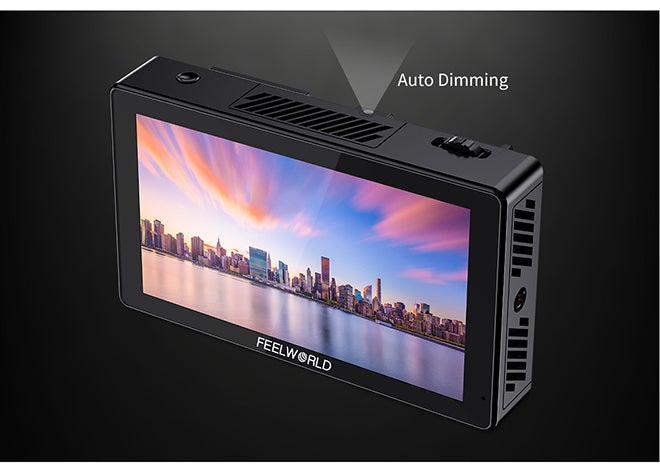

AUTO-DIMMING LIGHT SENSOR
LUT5 features an ambient light sensor, from a dark studio to a sunny location, from midnight moonlight to midday sunshine, it can automatically adjust the brightness of the monitor to suit your shooting environment.
DESIGN FULL TOUCH SCREEN
The innovative LCD user interface with touch screen gives you incredible control.
You can use simple tap and swipe gestures for the important monitoring functions without buttons.

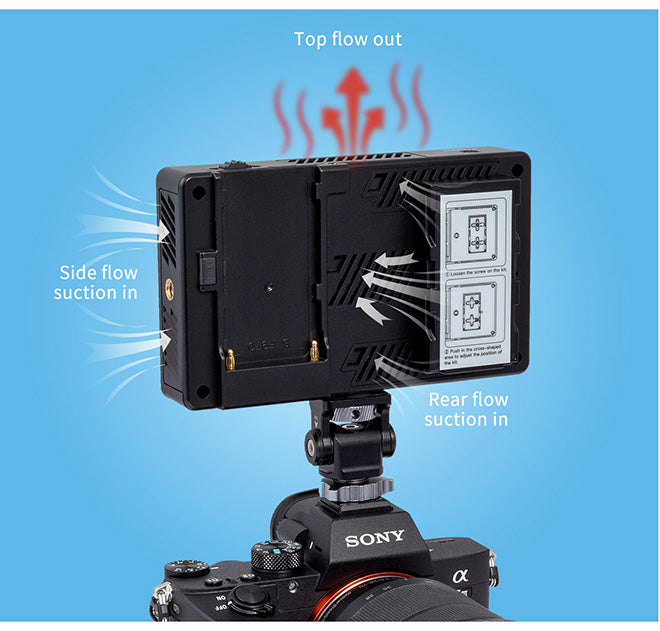

INTEGRATED COOLING SYSTEM
The monitor built-in in the low-consumption heat and fan conductive unit, and equipped with multi-dimensional cooling holes, better effective cooling.
INNOVATIVE OUTDOOR INSTALLATION AND POWER DESIGN

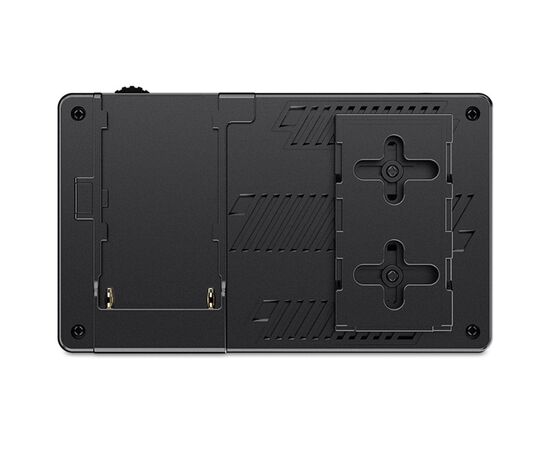

A Sony F970 outdoor installation and power kit design are added to the back of the monitor.
The external kit can be used to install and install external equipment, such as wireless transmission, LED light, video converter and others that can be powered by Sony F970 battery.
This innovative design of external power supply meets the need for power for wireless outdoor transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of the photographic equipment.
The kit has two cross grooves, you can adjust the position of the external device by loosening the screws.
When you don't need the kit, you can loosen the screws directly to remove it.

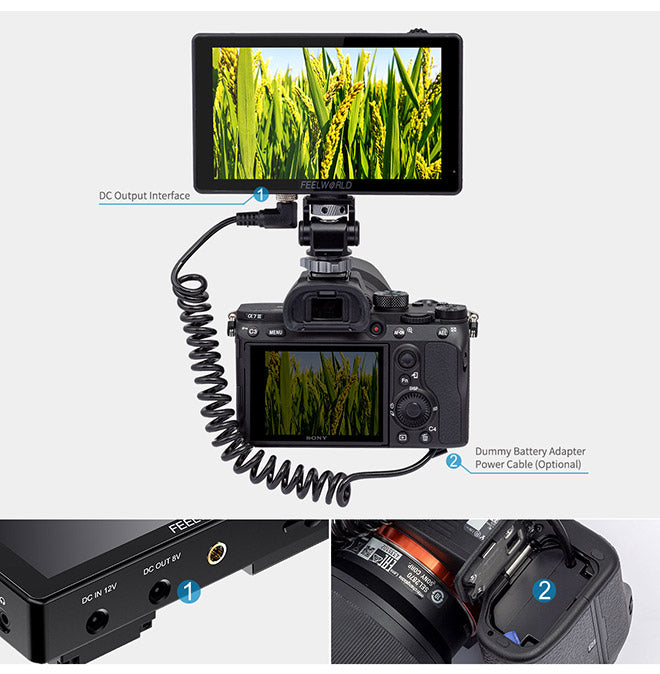

DC POWER SUPPLY: TURN ON YOUR DSLR OR MIRRORLESS CAMERA

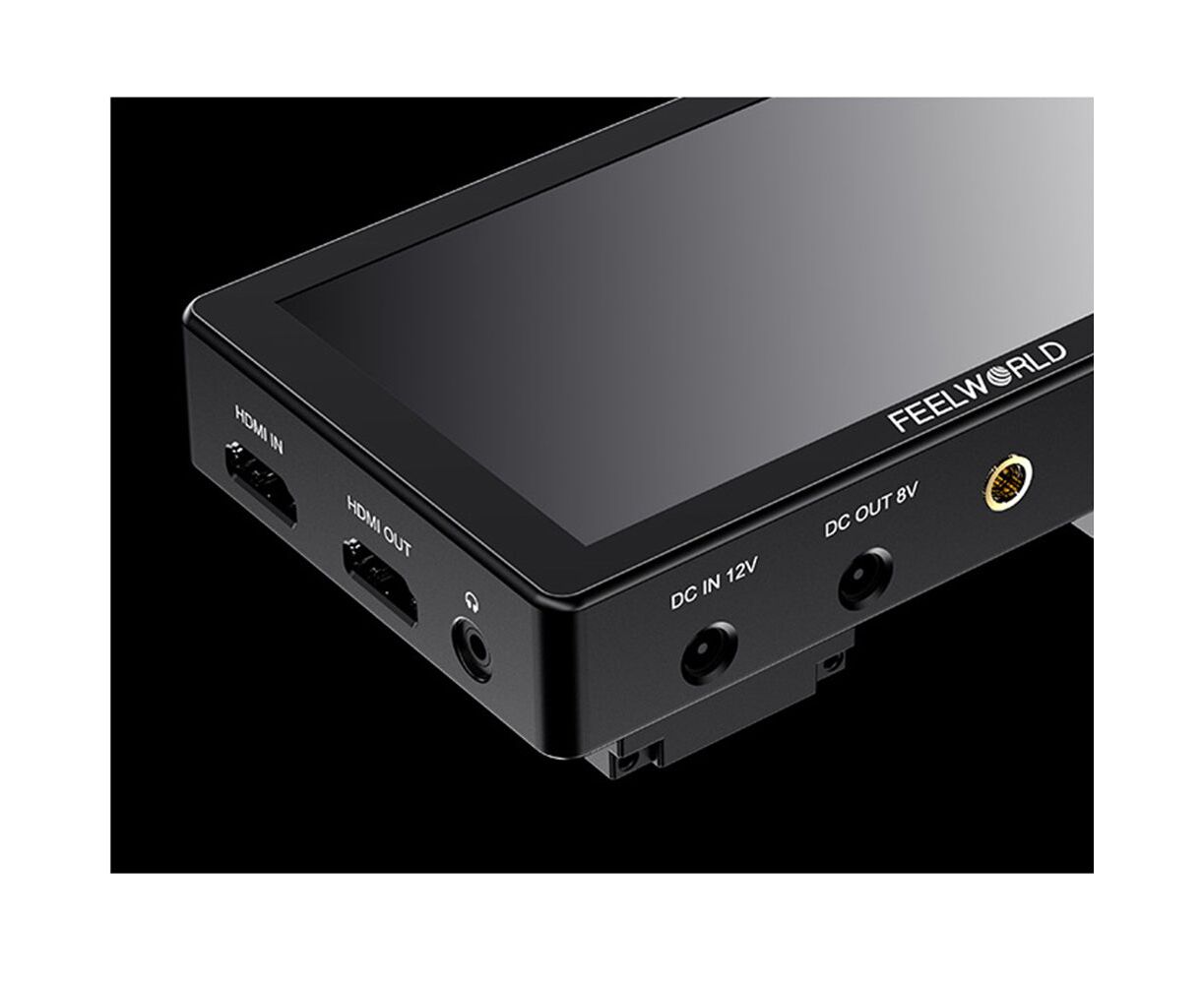

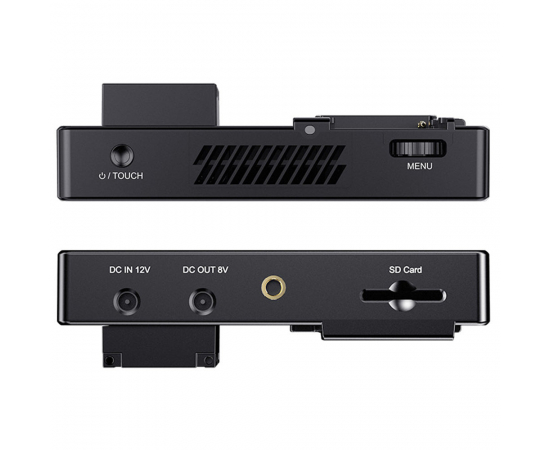

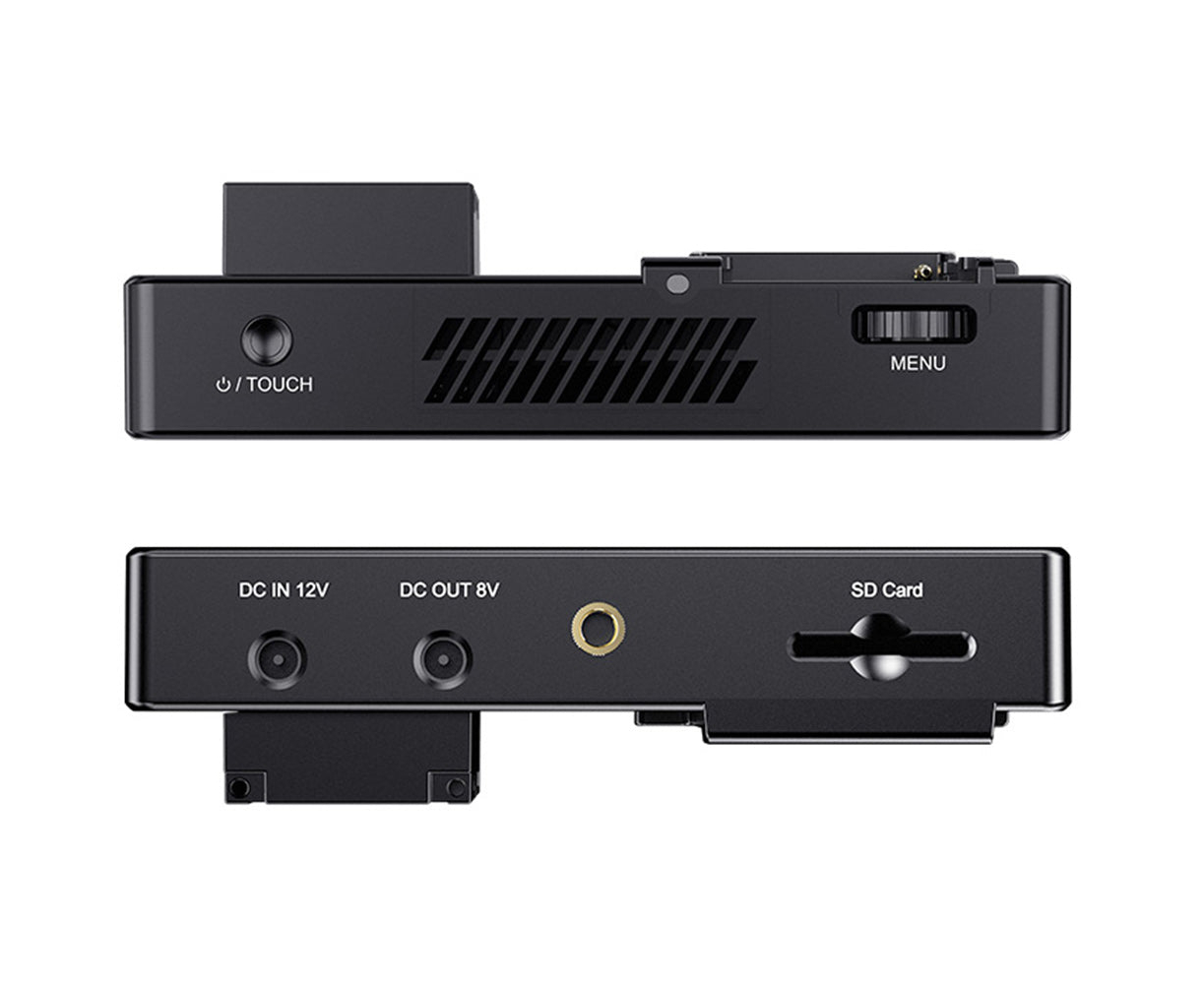

The LUT5 is not only equipped with DC IN 12V, but also provides auxiliary power (DC OUT 8V) allowing shooters to turn on their cameras.
With a battery adapter cable (optional), the LUT5 extends the camera's runtime, while providing a more usable screen.
Barrel output to power your camera with a DC coupler available separately via adapter (Sony NP-FW50 and Canon LP-E6 and Panasonic DMW-BLF19).
FLEXIBLE POWER SUPPLY
The back of the monitor provides a battery slot, which can be installed with standard Sony NP-F batteries to provide long-lasting power for your bright display!
Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 Series
Since LUT5 has 3000nit brightness, the power consumption is higher than normal brightness monitors, we recommend that you use Sony's standard F970 battery to power the monitor.
Using F970 battery (7.4V 6600mah), the monitor can work about 2.5 hours.
Box Contents:
1x FEELWORLD Monitor LUT5 4K 5.5"
1x Micro HDMI Cable
1x Mini Shoe Mount + Hex Wrench
1x Manual
