RODE Streamer X

The Streamer X is a professional video capture card, audio interface, and control surface integrated into a compact device that makes content creation incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, RØDE wireless headphones and microphones, with a high-gain, ultra-low-noise Revolution Preamp™, and powerful APHEX® audio processing that delivers crystal-clear sound quality. HDMI connections offer up to 4K30 streaming and 4K60 passthrough for incredible video quality in a wide range of applications, from streaming and gaming to podcasting and content creation, to business presentations. Dual USB-C connections perfectly accommodate dual PC setups,

Key features:

• Professional audio interface, video capture card, and integrated control surface in a compact, easy-to-use device
• Up to 4K30 video capture and 4K60 passthrough via HDMI
• Variable refresh rate (VRR) support
• Neutrik® combo jack for connecting microphones or XLR instruments, with a high-gain, ultra-low-noise Revolution Preamp™ for crystal-clear audio quality
• 3.5mm TRRS input for connecting headphones and 1/4-inch headphone output for zero-latency monitoring
• Built-in wireless receiver for connecting RØDE Series IV wireless microphones, including the  Wireless GO II  and  Wireless ME
• Internal DSP for advanced audio processing powered by APHEX®
• Four fully customizable SMART pads to trigger sounds, voice effects and MIDI commands
• Two USB-C interfaces for connecting to two computers or consoles
• Configuration and control made easy via RØDE Central desktop  companion app
• Compatible with free  UNIFY  streaming software for advanced audio routing, mixing, and setup
• designed and manufactured at RØDE's precision manufacturing facility in Sydney, Australia
• Specifications




  • Video Input Connectors:  1x HDMI Type-A 2.0
  • Video pass-through output:  1x HDMI Type-A 2.0
  • Maximum input resolutions (HDMI input):
    • 4Kp60 HDR
    • 1440p144 HDR
    • 1080p240 HDR
  • - Variable refresh rate (VRR) support:  Yes
  • Maximum capture resolutions:
    • 4Kp30
    • 1440p60
    • 1080p120
    • 1080p60 HDR

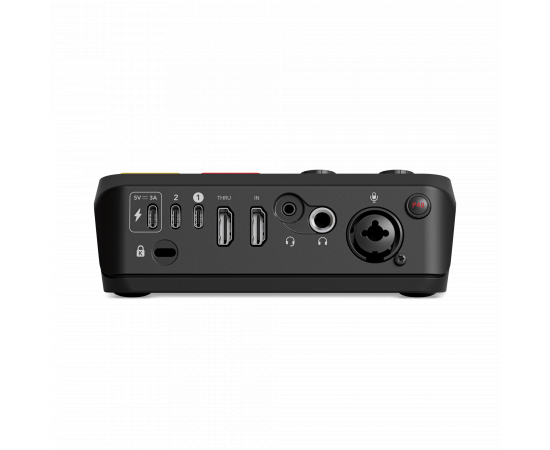

  • Audio Input Connectors:
    • 1x XLR Combo Connector (Microphone/Instrument)
    • 1x Wireless Receiver
    • 1x HDMI Input
  • Audio Output Connectors:
    • 1x 3.5 TRRS Headphone Jack (I/O)
    • 1x 1/4 headphone jack
  • Input Dynamic Range:  113dB
  • Preamp Noise:  -131.5dBV (A-weighted)
  • Frequency range:
    • Microphone Inputs: 20Hz-20kHz
    • Headphone Output: 20Hz-20kHz
  • Microphone Input Impedance:  4K ohms
  • Instrument Input Impedance :  1M ohms
  • Preamp Gain Range:  0-76dB
  • - Phantom Power:  Yes
  • Monitor Direction:  Yes
  • Headphone output power:  125mW per channel
  • Internal storage (GB):  2GB (SMART Pads)
  • Power Requirements:  Via USB: 5V @ 3A
  • USB Interface:
    • USB 1: USB 3.1 Type-C
    • USB 2: USB 2.0 Type-C
  • Bit Depth:  24-bit
  • Adhesion Rate (kHz):  48kHz
  • Processing:
    • APHEX Processing
    • Rotate FX Voice
  • Minimum operating system requirements:
    • macOS 10.15 or later
    • Windows 10 Version 1803 or later
    • Windows 11
  • Dimensions (LxWxH):  144 x 122 x 51 mm
  • Weight:  380 grams

Box Contents:

1x RODE Streamer X
