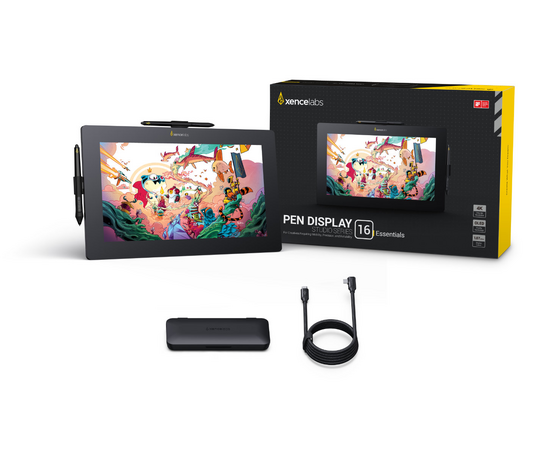

XENCELABS 4K 16" Interactive Desk - Studio Series
XENCELABS 4K 16" Interactive Desk - Studio Series
Inspiration is everywhere. Finely tuned pressure curve, 4K, 16" OLED display, preloaded color spaces for added convenience, ultra-slim, single-cable portable design.
The 16" Interactive Table offers exceptional portability, vibrant colours, high contrast levels and precise, natural pencil yield. It's perfect for professional digital artists and designers looking for an excellent drawing experience, wherever they are.
Designed with portability in mind
The 16 inch OLED Interactive Desk has a slim profile of 12mm and weighs only 1.2kg, so it is easy to carry for different types of work.

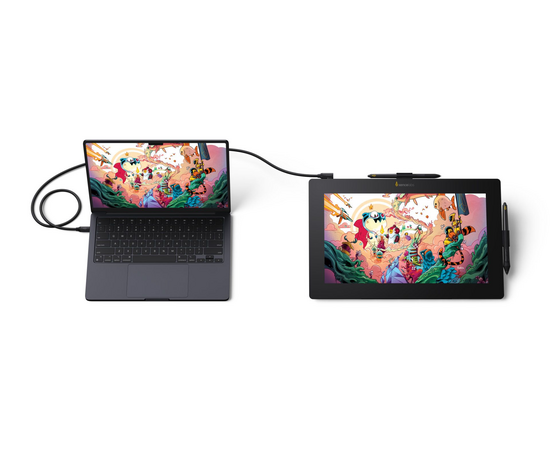

A single USB-C cable can connect the interactive table to a computer that supports DP Alt mode and delivers 15W of power through the USB-C port. This configuration offers a clear connection and flexible screen position, ideal for working on the go.
For computers without a proper USB-C port, the included XENCELABS Hub Bundle offers USB-C, HDMI, DisplayPort, and included power connectivity, resulting in a brightness boost of up to 300cd/m².
Studio-quality drawing experience
The XENCELABS Studio Series Interactive Table 16" provides excellent pencil control thanks to the texture of its surface. This allows the hand to glide smoothly across the screen, with the pencil tip rubbing against the screen, providing a traditional pencil-on-paper experience. The pressure curve has an initial activation force of 3g up to 500g. This allows for delicate strokes and strong, bold lines. The pressure curve adjusts meticulously thanks to a panel of artists who provided pressure data. Whether with a strong or light hand, the labeler provides control, sensitivity and precision. The labeler's response is adjustable to suit any drawing style.
Stunning 4K OLED Pen display
The 4K OLED Display delivers 1070 million colours, enhanced colour reproduction that ranges from deep blacks to vibrant high lights, allowing creatives to work with pinpoint colour accuracy.
High resolution: 3980 x 2160c
High contrast ratio: 100,000:1
Color depth: 1,070 million primary colors.
These five common colour gamuts that are used in different industries allow you to visualise your work according to your needs, without the need to calibrate the colour of the screen.
Adobe RGB: 98
P3-D65: 98
sRGB: 99
REC 709:99
REC 2020: 82
Exceptional Glare Reduction: The specially designed viewing surface significantly reduces unwanted reflections and provides superior clarity in well-lit environments or rooms with ceiling luminaires. The screen is optically attached, which eliminates parallax and produces a clear and bright image. No "shiny" effect that distracts or tires the eyes.
Aerodynamic and ergonomic design
Two pencil sizes are included, Xencelabs 3 Button Pen v2 and Xencelabs Thin Pen v2, to suit individual preferences. Both have a built-in rubber and can adapt to different application configurations.
The XENCELABS Studio Series 4K Interactive Desk 16" is designed with a high-quality aluminum outer cover, which ensures fast heat dissipation without the need for fans, which prevents overheating and allows you to design comfortably.
The included movable easel has tilt angles of 18º and 32º, which makes it easy to adapt to different positions and design for easy viewing.
Adapts to the preferences of each artist
Virtual Tablet Mode™ allows creatives to use the interactive table to select and control objects on other connected screens.
The configuration panel makes it easy to customize quick keys, sensitivity to pencil pressure, pencil buttons, and more. With periodic updates, it is always up to date and reliable.
Xencelabs Quick Keys has 8 buttons with 5 sets for up to 40 customizable shortcuts per application and the display has four modes for zooming, rotating, brush size, etc. It is compatible with any application that uses keyboard shortcuts.

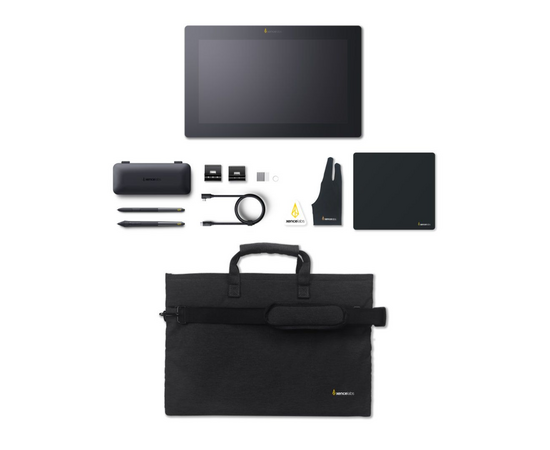

Xencelabs equips users with all the necessary accessories for their immediate use. The XENCELABS Interactive Tablet 4K 16" - Studio Series comes with a pencil case that contains the Xencelabs 3 Button Pen v2 and Xencelabs Thin Pen v2, 10 additional pen refills (6 standard, 4 felt and extractor), bluetooth dongle and a USB-A to USB-C adapter, Xencelabs Hub Bundle, Xencelabs Mobile Easel, a drawing glove and the Xencelabs Carrying Case to store the entire kit.
Compatible Software:
PC: Windows® 7 or newer
Mac: OS X 10.12 or later
Linux: Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above

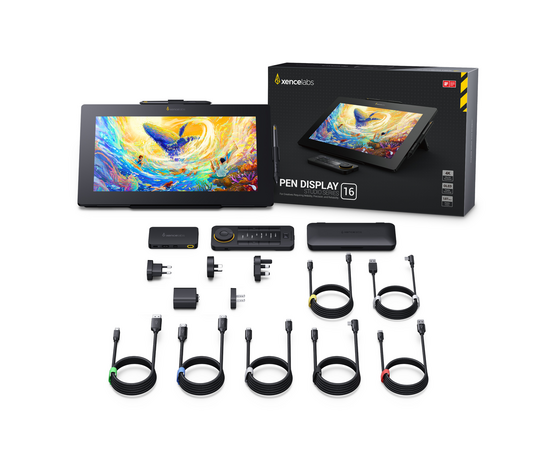

Box Contents:
1x XENCELABS 16" 4K Interactive Desk - Studio Series (LPH1612U-A)
1x Xencelabs Mobile Easel (S-03)
1x Boligraph Case
5x Power adapters
1x Xencelabs Hub Bundle
1x Xencelabs v2 3-Button Pencil + Eraser (PH35-A)
1x Xencelabs v2 Thin Pencil + Eraser (PH36-A)
1x Quick keys (K02-A)
1x 2 m USB-A to USB-C Cable (L-shaped, Quick Keys charge)
2x Boligraph Clips
1x Adapter (USB-A to USB-C)
1x Wireless Dongle
10x Bits (6 standard, 4 felt)
1x Pen Puller
1x Cleaning cloth
1x Glove (M)
1x 1.2 m USB-C /USB-A 3.0 (standard) cable
1x 1.2 m USB-C /USB-C Cable
1x 1.2m Display Port/Display Port Cable
1x HDMI 2.0 /HDMI 2.0 cable, 1.2 m
1x 1.5m USB-C to USB-C Cable (L-shaped, braided)
1x 2 m USB-C/USB-C power cable
1x Xencelabs Carrying Case
1x Sticker
Additional information:
Model No.: LPH1612U-A
Color: Charcoal Black
Compatibility: Mac OS, Windows, Linux
Connectivity: USB-C, HDMI, and DisplayPort cables; USB cable for tombstone data.
Pencil technology: battery-free EMR (electromagnetic resonance)
Case Dimensions: 475 x 326 x129 mm, 18.75 x 13 x 5 inches
Carton Weight: 5.67kg, 12.5 lbs
