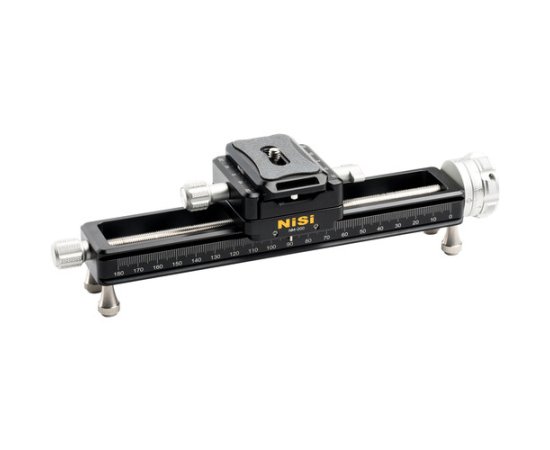

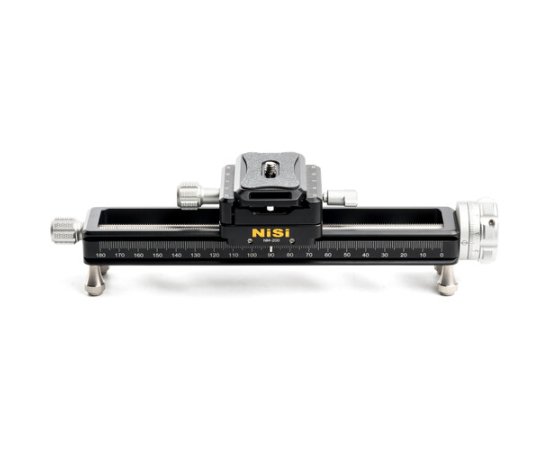

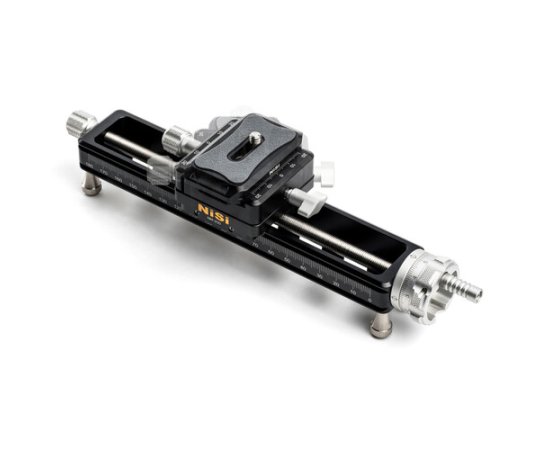

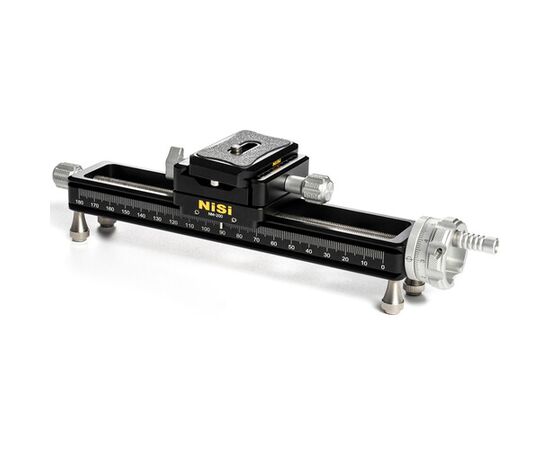

NISI Macro Rail Focusing NM-200S
The NM-200S Focus Macro Rail with 360-degree swivel clamp gives you the ability to precisely adjust your camera's position when shooting macro.
The rail is equipped with an integrated Arca type compatible quick release clamp and also includes an Arca type plate.

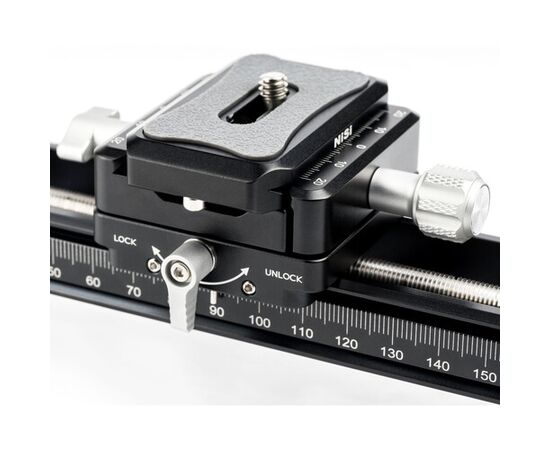

The clamp can be positioned quickly using the lock/unlock lever to make large adjustments quickly.
The focus rail itself features a double dovetail mount and fits most Ark-type clamps on the market.

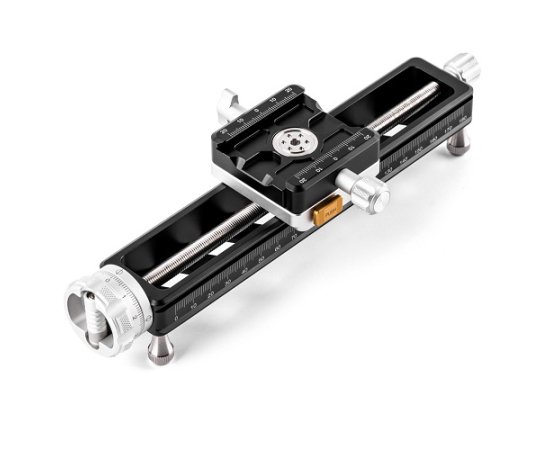

The mounting clamp allows for 360-degree rotation to change the direction of the camera without the need to remove the clamp plate.

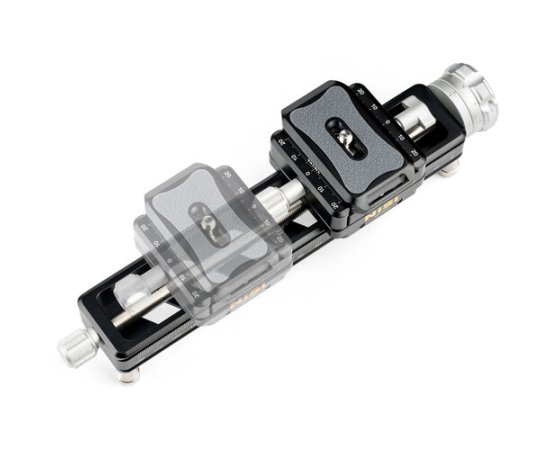

The adjustment range is 180mm while the rail size is 200mm, maximizing camera movement.
The movement is adjusted by a foldable thumb screw knob that makes it easy to adjust and store.

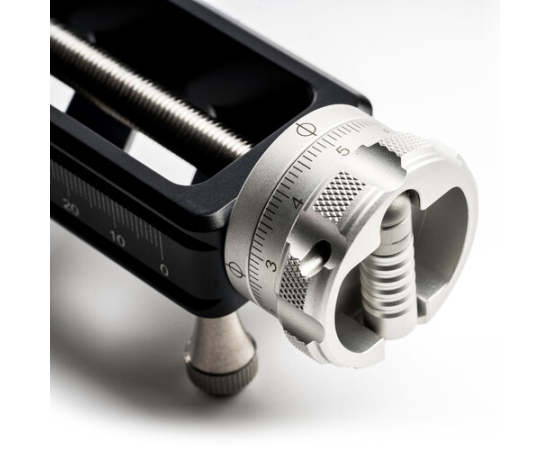

The retractable screw knob has been updated and features engraved index markings for precise adjustment.
Included is a longer quick-release plate designed for telephoto lenses and with a groove for straps and is easy to lock and release.
The maximum rail load is 5kg.

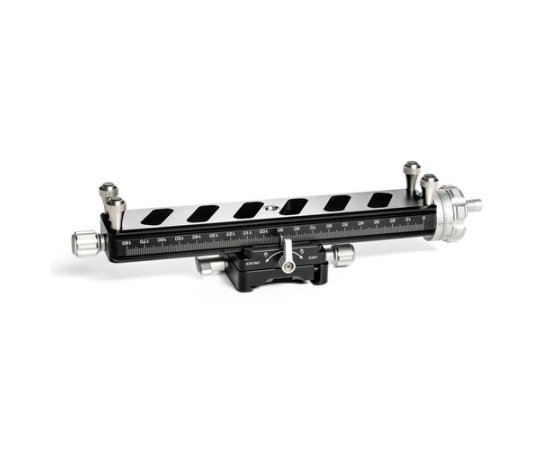

The Macro Rail can be mounted on most Arca type ball clamps/heads on the market and also includes four detachable foot studs that allow the rail to be used directly on the table top.
The offset of the stage per revolution is 1 mm with index marks engraved on both sides of the rail for fine adjustments.
The bottom of the rail includes 3/8" and 1/4" screw holes that allow the use of all tripod heads.
The NiSi NM-200S quick-adjust macro focus rail with 360-degree swivel clamp is constructed of high-quality CNC machined aluminum and is anodized with corrosion-resistant finish.
These features make it resistant to scratches and scuffs.
The two focus rails can be stacked for dual-axis adjustments.
The NM-200S Focus Macro Rail with 360-degree rotatable clamp is the perfect companion for NiSi macro lenses.
Box Contents:
1x NISI Macro Rail Focusing NM-200S
