SMALLRIG 3580 Battery Mini VB99 6700mAh V-Mount
SMALLRIG VB99 Battery Mini V-Mount 3580
This Battery is about 70% the size of a regular V-Mount battery, due to its highly integrated design that takes up less space, making it lighter and more portable. The highly integrated BMS chip (Fast Charging Protocol + MCU + Voltage Boost Control) supports a wide spectrum of fast charging protocols.
Its intelligent BMS system ensures fast and safe charging by providing multiple protections against current overloads, overheating, overvoltage, etc.

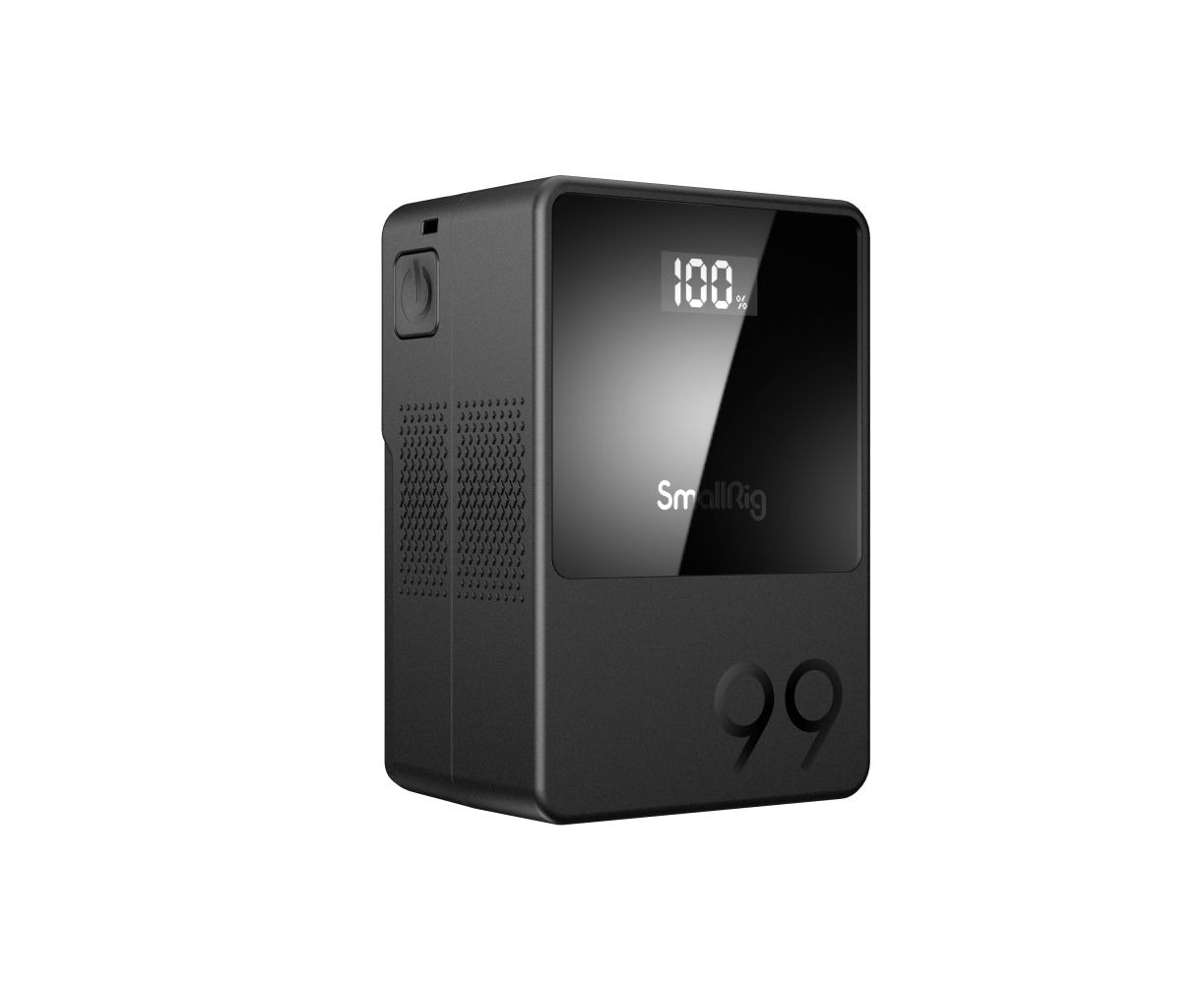

The BMS chip has 16bit ADC/power meter algorithm, along with an MCU and a digital OLED display so you can control the battery status at any time. Built-in premium high-performance battery, which is rechargeable and stable, satisfies MSDS/UN38.3/IEC62133/UL2054/UL62368 and other internationally recognized standards, allowing you to capture every moment without weighing it down.
Features:
- Material: Fireproof PC
- Capacity: 14.8V 6.7Ah 99Wh
-Rated Power: Discharge: 99W Charge: 65W
-V Mount / D-TAP Input: 8A (Max)
-V Mount/D-TAP Output: 14.8V/14A (Max)
-USB-A Output:QC2.0/QC3.0/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A: QC2.0/AFC/FCP: 5V/3A, 9V/3A, 12V/2A, QC3.0: 4.2-9V/3A, 9-12V/2A, SCP: 4.5V/5A, 5V/4.5A, DCP-1.5A: 5V/1.5A, APPLE-2.4A: 5V/2.4A
-USB-C Input/Output, Input 65W (Max), Output 65W (Max): PD3.0/QC2.0/QC3.0/PPS, /AFC/FCP/SCP/DCP-1.5A/, APPLE-2.4APD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, QC2.0/AFC/FCP: 5V/3A, 9V/3A, 12V/2A, QC3.0: 4.2-9V/2A, 9-12V/2A, SCP: 4.5V/5A, 5V/4.5A, DCP-1.5A: 5V/1.5A, PPS: 3.3-21V/3A, APPLE-2.4A: 5V/2.4A

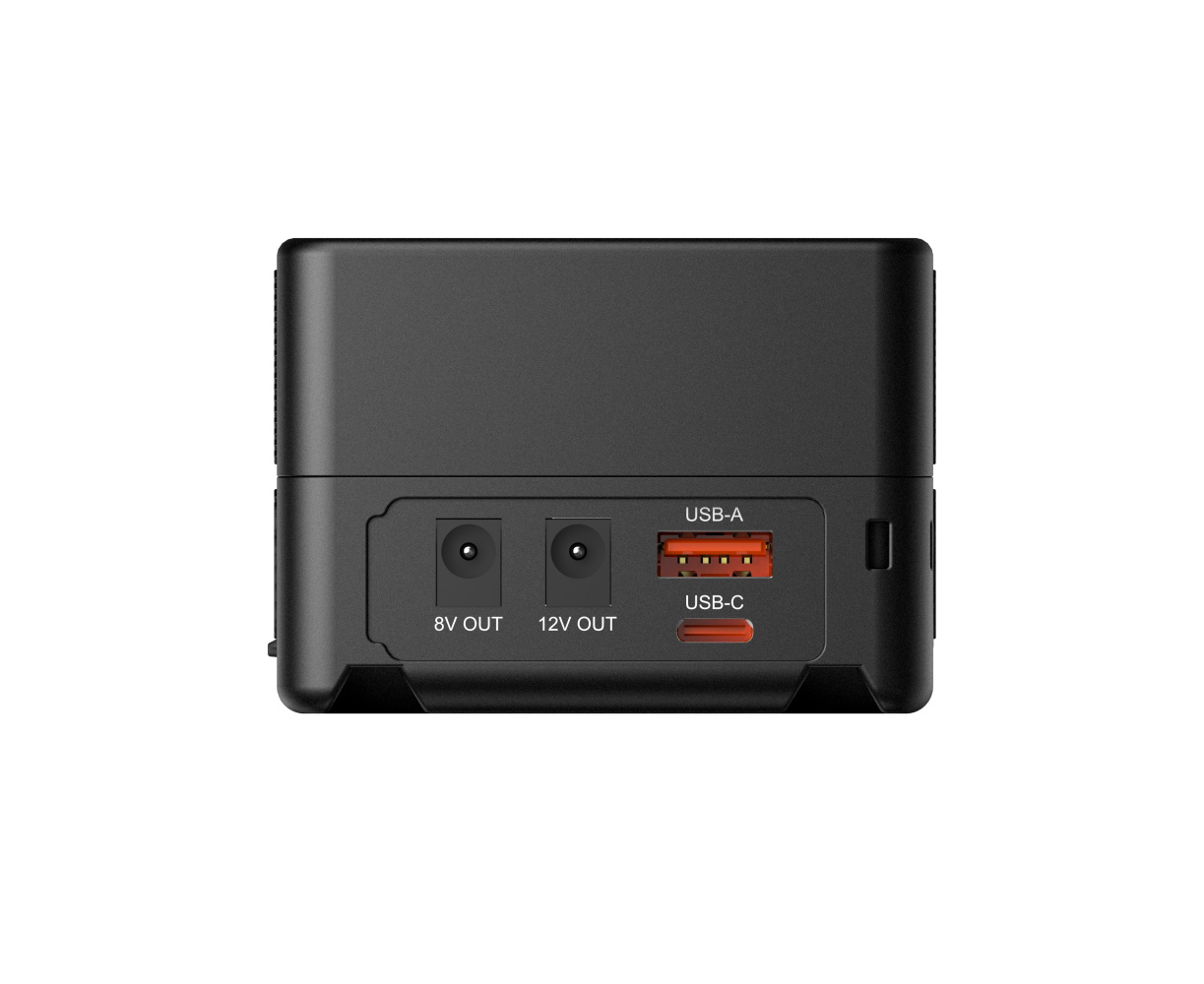

-DC1 Output: 8V/Max3A
-DC2 Output: 12V/Max3A
-Cutoff Voltage: 11V
-Optional Charging Method: 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
Box Contents:
1xSMALLRIG VB99 Battery Mini V-Mount 3580
1x Instruction Manual
