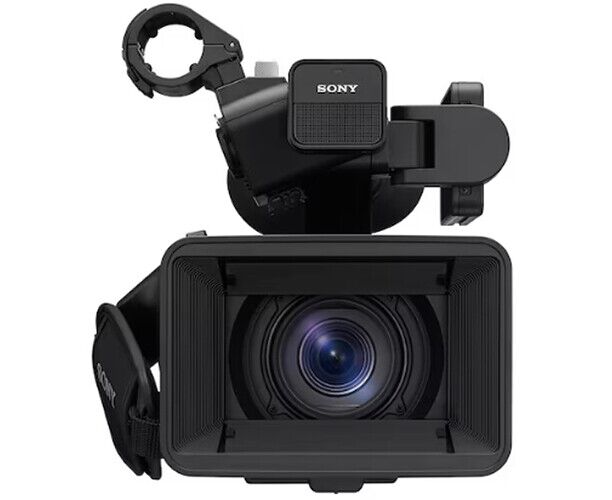

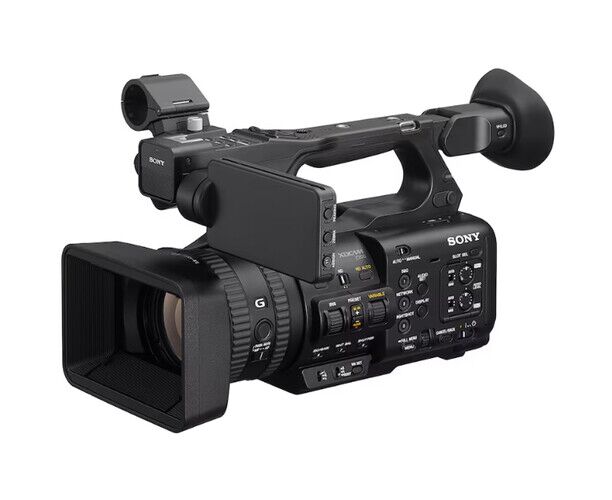

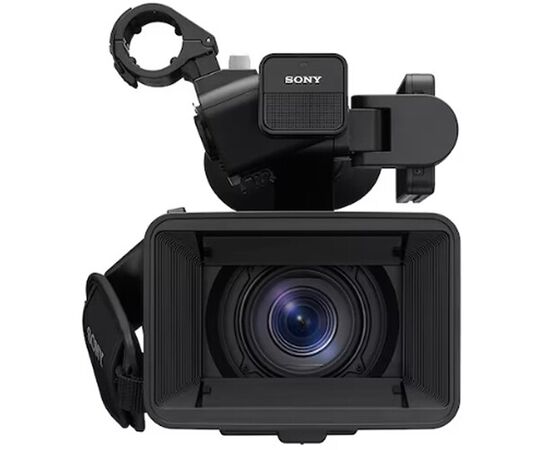

SONY Z200

SONY PXW-Z200
Shoot, record and stream in 4K HDR with a 20x optical zoom, AI-powered Subject Recognition AF and built-in 2.4GHz/5GHz Wi-Fi*, and 12G-SD connectivity.
* 5 GHz communication may be restricted in some countries and regions.

CRISP DETAILS AND VIVID COLOURS, EVERY TIME
Capture stunning moving images in 4K HDR, with colors, textures, and details that pop.
The Z200's powerful 1.0-type Exmor RS™ stacked CMOS sensor delivers high-sensitivity, low-noise images at up to 120 fps* in 4K and 240 fps in FHD.
Preserve every detail with full-pixel readout and real-time BIONZ XR™ image processing, while 709tone and S-Cinetone™ compatibility makes it easy to match colors with Cinema Line and Sony system cameras.

* With a cut of approximately 23%. Refer to the operating instructions for the minimum memory card requirements to ensure correct operation.

SMART FEATURES FOR SMARTER CAPTURE
Rely on Sony innovations that help you capture the best content possible. Our advanced AI processing unit can recognize human objects, while the Fast Hybrid AF system tracks your subject and maintains accurate focus at all times.
A variable electronic ND filter means you can get the best exposure for your photos, in a wide range of lighting conditions, or the auto ND function will automatically set the ideal exposure for you.

RELIABLE CONNECTIVITY FOR TV STREAMING AND BROADCASTING
Built-in 2.4GHz and 5GHz* Wi-Fi, in conjunction with our C3 Portal (paid) or XDCAM Pocket apps, enables simple, high-quality streaming directly from the camera.
Remote operation via our Monitor & App Control** lets you check angles and monitor footage from your smartphone or tablet.
The Z200 also offers integrated 12G-SDI with four times the bandwidth of 3G-SDI in a single cable, TC input/output and XAVC (MXF) compatible transmissions.
* 5 GHz communication may be restricted in some countries and regions.
** Monitor & Control is available on the Google Play Store and Apple App Store, free of charge.

1.0-TYPE EXMOR CMOS SENSOR
To achieve imaging performance that would otherwise be unattainable in a compact camcorder, the Z200 relies on a large 1.0-type Exmor RS Exmor RS large 1.0-type CMOS image sensor.
Its unique stacked structure, with backlit pixels layered over integrated signal processing circuitry, allows for faster read speeds and superior performance in low-light conditions as more light reaches the sensor.

BIONZ XR IMAGE PROCESSING
Integrated into the image sensor, our next-generation BIONZ XR image processor enables higher frame rates, faster autofocus, improved Auto Tracing White Balance (ATW) control, and superior noise reduction.
It extracts maximum performance from the high-resolution image sensor, effortlessly capturing the subtlest textures and finest details.
5K supersampling with full-pixel readout condenses a wide range of image information into stunning 4K (3840 x 2160) 60p video.

IMPROVED WHITE BALANCE ACCURACY
The Z200's auto-tracking (ATW) white balance control has evolved along with the capabilities of BIONZ XR and AI.
The camera's AI processing unit allows for more precise ATW control, even in challenging lighting conditions, such as when the targeted person is in shadow.

ADVANCED AI PROCESSING UNIT FOR THE NEXT GENERATION OF AF
A specialized AI processing unit, working in conjunction with BIONZ XR, uses deep learning based on human form and posture data to recognize human subjects with high accuracy.
The Fast Hybrid AF system offers a wide coverage of 81% to better support subject recognition AF and real-time tracking.
The Z200 can effortlessly track and maintain focus on objects almost anywhere in the frame.

AUTO-FRAMING*
With auto-framing enabled, the camera will automatically track a recognized human object and adjust the framing so that the subject is always positioned prominently in the frame.
The resulting footage may appear as if a human operator is manually adjusting the framing during filming, even though the camera is stationary the entire time.
Solo operators can focus on interacting with the interviewee without having to constantly check camera placement.
Starting with Ver.2.0, the crop and framing position can be manually adjusted via Monitor & Control Ver. 2.3. Up to 10** compositions can be preset.
* 4K footage is cropped, resulting in a narrower angle of view. Please note that this image was shot with the HXR-NX800.
** Paid version only. Up to 2 presets are available at no cost.

4K 120 FPS* FOR STUNNING SLOW-MOTION FOOTAGE
The Exmor RS sensor's high readout speed enables 4K recording with high frame rate (HFR) at up to 120 fps and FHD at 240 fps.
Get 4x slow-motion in 4K at 30p or 5x slow-motion at 24p. Whatever your creative choice, High-Speed AF helps ensure your subject is kept in focus.
Slow & Quick Motion** is supported for recording up to 4K 120fps and FHD 240fps.
* With a cut of approximately 23%. 100 fps/200 fps in PAL mode. Refer to the operations manual for the minimum requirements of the memory card to ensure correct operation.
**Audio is not recorded in slow and fast motion.

20X OPTICAL ZOOM
An excellent G Lens™ with powerful 20x zoom covers everything from wide-angle in-car interviews to telephoto close-ups for sport.
Offering an optical zoom range of 24-480mm (35mm equivalent at full-frame), it's based on Sony's Clear Image Zoom technology, which adds the ability to achieve a 30x zoom when shooting in 4K.
Starting with Ver.2.0, the Z200 supports High Quality Digital Extender with Clear Image Zoom function up to 60x in FHD.
And you can explore the maximum apertures of F2.8 (wide) and F4.5 (telephoto) while zooming quickly, smoothly and quietly.

ADVANCED IMAGE STABILIZATION
Minimize the effects of camera shake with built-in image stabilization.
Make sure your footage is smooth and stable with Active Mode image stabilization*, where optical and electronic stabilization work together to make handheld shots glide effortlessly.
* Small image cropping in active mode. Active Mode is not available when recording at frame rates of 120 (100) fps or higher, including S&Q.

INTEGRATED ELECTRONIC VARIABLE ND FILTER
Perfectly adjust the variable electronic ND filter to suit a variety of light levels.
Switch from 1/4 to 1/128 ND with a simple dial adjustment, or rely on Auto ND to maintain the exposure that's right for you – especially useful when moving quickly between indoors and outdoors.

ACCURATE LCD MONITOR AND OLED DISPLAY
Easily monitor and focus on objects with a new 3.5-type LCD monitor that delivers approximately 2.76 million dots with exceptional brightness and sharpness.
The monitor moves up and down as well as backwards, so it's easy to find a comfortable viewing angle.
The supplied LCD cover is easily installed by sliding it into the slots at the top and bottom of the LCD monitor, while the monitor can be folded for storage even with the cover installed.
For clear, distraction-free viewing, the 0.39-type high-contrast OLED viewfinder blocks out external light and offers approximately 2.36 million dots.

COMPACT DESIGN AND STORAGE
Easily fold the EVF and LCD panel to store this lightweight camera. The Z200 (main body only) weighs approximately 1.96 kg (4 lb 5.1 oz) and measures 175.6 mm (7 in) x 201.3 mm (8 in) x 371.1 mm (14 5/8 in.) (WxHxD), but when stored, these dimensions drop to 175.6 mm (7 in) x 175.4 mm (7 in) x 285.1 mm (11 1/5 in.) (WxHxD)*.
The microphone mount can be removed from the camera to further enhance portability.
* Without the lens cap, microphone mount, and large eyecup.

FLEXIBLE CAMERA CONTROL
The Z200 is designed with the flexibility to operate according to your individual preferences and workflow demands.
Two independent control rings for focus/zoom [1] and two dials for IRIS/ND Variable [2] are located side by side, allowing effortless control of exposure in addition to focus and zoom.
As of Ver.2.0, IRIS can be assigned to the zoom ring and Zoom can be assigned to the focus ring. The Z200 also has 12 user-assignable buttons (ASSIGN 1-11 [3] and FOCUS PUSH AUTO button [4]) that you can set to control almost all camera features.

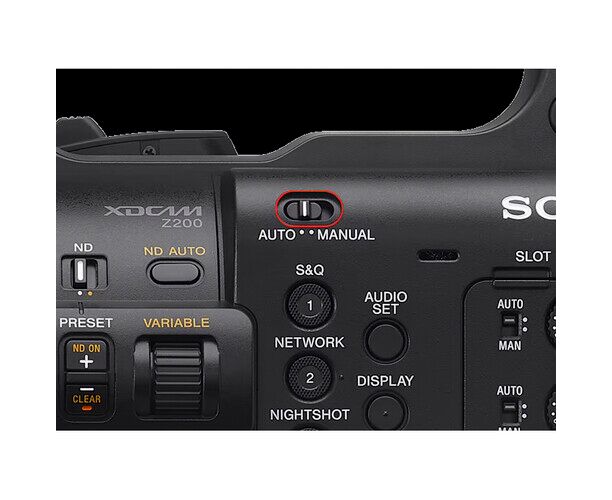

AUTO/MANUAL SWITCH
If shooting conditions suddenly interrupt your shots, you can automatically adjust the settings and maintain optimal brightness and white balance with a single switch.
When set to AUTO, it activates Auto ND Filter, Auto Iris, Auto Gain Control, Auto Shutter, and Auto White Mode.

CINEMATIC AND BROADCAST BASE APPEARANCE
Easily achieve the look and feel of professional film or broadcast productions.
Use presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild, and HLG Natural, and then adjust the black, matrix, and other parameters as desired.
Easily match the colour of your footage to content shot on other Sony broadcast cameras and Cinema Line.
Starting with Ver.2.0, the scene file can be streamed as a single file, including Basic Appearance.
In Custom mode, the settings of items that are subject to Store/Recall in the scene file can be saved (exported) to media and loaded (imported) to the Z200 and NX800.

MULTIPLE RECORDING OPTIONS
The Z200 offers a wide range of recording formats to meet the individual requirements of your project.
XAVC (MXF) offers enhanced compatibility for MXF-based broadcast TV workflows. XAVC S-I delivers the highest quality 4:2:2 10-bit recording for 4K (QFHD) using easy-to-post-production Intra-Frame H.264.
The XAVC HS-L (H.265) and XAVC S-L (H.264) offer a choice of 4:2:2 or 4:2:0 with long GOP recording for extended recording times and file-saving efficiency.
XAVC HS proxy recording up to 16 Mbps can be recorded simultaneously with higher bitrate formats, and these smaller proxy files can be used for editing and viewing prior to final production delivery.
Starting with Ver.2.0, the Z200 supports MPEG HD422*

* MPEG HD License upgrade required (CBKZ-SLMP).

COMPREHENSIVE CONNECTIVITY
Use SDI input and output (12G, 6G, 3G Level A&B, and HD), as well as TC input and output, for proxy recording and multi-camera productions.
Connect to external equipment via HDMI Type-A, USB Type-C®, LAN, REMOTE, and a wide range of other connectors.

WIRELESS MONITORING AND REMOTE CONTROL
Check angles remotely before shooting, then monitor and control the camera, all thanks to built-in 2.4GHz and 5GHz Wi-Fi connectivity*.
Download the free Monitor & Control app to record, tap focus, adjust iris, and more.**
* 5 GHz may be restricted in some regions
** Monitor & Control is available on the Google Play Store and Apple App Store

4-CHANNEL AUDIO
Record up to four channels of audio by combining inputs via XLR connectors and the Multi Interface (MI) shoe.
Adjust the levels of two of the channels using the audio level selectors, without accessing the device menus.

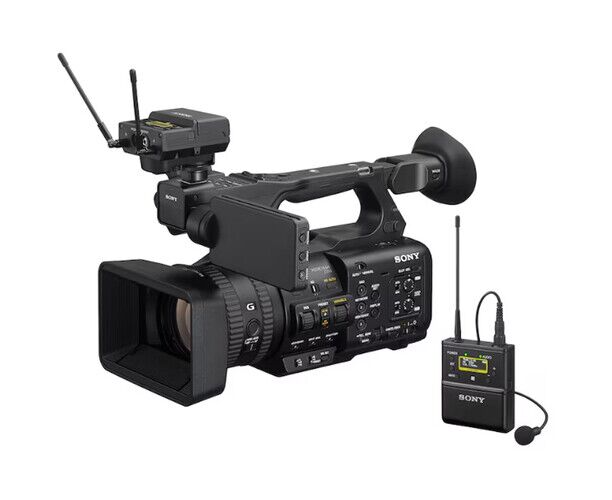

With the SMAD-P5 adapter, the UWP-D Series lets you capture crystal-clear audio – quickly, reliably, and hassle-free.

DESIGNED FOR LIVE STREAMING
Stream directly to compatible live streaming services and video-sharing sites, via a wired or Wi-Fi connection.
RTMP/RTMPS or SRT protocols make it easy for a single operator to efficiently manage everything from recording to distribution.
Additional apps and technologies allow you to do even more:

• The Creator's Cloud for enterprise C3 Portal (paid)* and XDCAM Pocket apps use Sony's original QoS technology to support high-quality streaming.
• The Creator's Cloud for enterprise M2 Live (paid)* app allows for multi-camera streaming/distribution.
• The PDT-FP1* Portable Data Transmitter offers stable and continuous high-speed data transfer and a wide range of bands, including LTE and 5G Sub6 and mmWave.
• The CBK-RPU7 remote production unit enables low-latency transmission of high-quality images via an SDI connection.
• UVC is available from Ver.2.0. The Z200 can function as a high-performance webcam when connected to a computer via USB.

* Availability limited to specific regions.

SIMPLE FILE TRANSFERS
Easily upload proxy and original clips to a cloud or FTP server, directly from the memory card.
Once you register the destination server on the camera, the recorded files are automatically transferred whenever the recording is stopped.
Proxy clips can even be written to segments and transferred sequentially during recording.
The Creator's Cloud for enterprise C3 Portal (paid)* APP makes cloud transfers easy, so video files are available for editing and sharing even sooner.

* Availability limited to specific regions

TWO MEMORY CARD SLOTS
Record to two cards simultaneously or use relay recording to back up your content.
Dual memory card slots support CFexpress Type A and SDXC memory cards.

RELIABLE BATTERY POWER
Quickly charge BP-U35, BP-U70, or BP-U100 lithium-ion batteries using the BC-U1A or BC-U2A charger (batteries and charger sold separately).
The continuous operation time with a BP-U35 battery is approximately 90 minutes. Swap batteries between other Sony cameras, including the PXW-Z280 and PXW-Z190 camcorders, as well as the FX9 and FX6 Cinema Line cameras.

INTERNAL FAN AND VENTILATION OPENINGS
Maintain optimal operating temperature, thanks to an integrated cooling fan and carefully designed ventilation openings.

INTERVAL RECORDING AND IMAGE CACHE RECORDING
Images can be automatically recorded at intervals defined by setting the number of frames per shot and the shooting interval.
By storing video in the internal memory before pressing the Rec (Record) button, you can record video footage of approximately 5, 10, 20 seconds, etc., before.

ACCESSIBILITY
A screen reader function* allows menu screens to be read aloud with user-selected volume and reading speed.
A screen magnification feature increases the size of the recording, playback, and menu screens with a user-selected magnification ratio.

* Availability varies by region and language.

SUSTAINABILITY
Steps have been taken to reduce the environmental footprint of this product at all stages of its life cycle: from product development to the supply chain, production and packaging.

Box Contents:
1x Sony PXW-Z200
1x AC Adapter
1x Power cable
1x Battery Charger
1x Rechargeable Battery
1x LCD Shield
1x Lens Cap
1x Eyecup
1x Microphone Stand
1x Cold Shoe Kit
