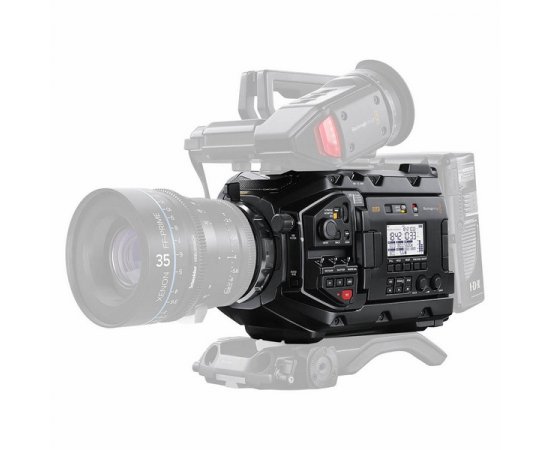

BLACKMAGIC DESIGN URSA Mini Pro 4.6K G2 - EF Mount
URSA Mini Pro 4.6K G2 is a digital film camera with current electronics.
URSA Mini Pro 4.6K G2 is a digital film camera with upgraded electronics and a high-performance 4.6K HDR image sensor for shooting at up to 300 frames per second.
You get a 4.6K Super 35mm sensor with 15 stops of dynamic range, built-in optical ND filters, interchangeable EF lens mount that can be swapped out for optional PL, B4 or F mounts, dual recording in ProRes and Blackmagic RAW formats on CFast or SD cards, and an innovative USB-C expansion port for direct recording to external drives.
The URSA Mini Pro 4.6K G2 camera also features an extensive set of external broadcast-style controls, backlit status display, fold-out touch screen monitor and more.
Camera features Effective sensor size
25.34 mmx14.25 mm (Super35)
Lens Mount
EF fitting included. Interchangeable with optional PL, B4 and F lens mounts.
Lens Control
Electronic control via EF mount pins or 12-pin broadcast connector for compatible lenses.
Dynamic Range
15 stops.
Shooting Resolutions
4608 x 2592, 4608 x 1920 (4.6K 2.40:1),4096 x 2304 (4K 16:9),
4096 x 2160 (4K DCI),
3840 x 2160 (Ultra HD),
3072 x 2560 (3K Anamorphic),
2048 x 1152 (2K 16:9),
2048 x 1080 (2K DCI),
1920 x 1080
Frame Rates
Maximum sensor frame rate dependent on selected resolution and codec. Frame rates compatible with projects of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.
High-Speed Frame Rates
Blackmagic RAW 8:1
Full 4.6K – Up to 120 fps
UHD Windowed - Up to 150 fps
Windowed HD - Up to 300 fps
ProRes 422 HQ
Full 4.6K - Up to 80 fps
UHD Windowed - Up to 120 fps
D Windowed - Up to 240 fps
Built-in ND Filters
ND filter wheel with four positions, including 2 stops, 4 stops and 6 stops.
Focus
The Focus button enables focus peaking, autofocus available using compatible lenses.
Iris Control
Iris ring and slider on the touch screen for manual iris adjustment on electronically controllable lenses, "Iris" button for automatic iris settings on compatible lenses, so no pixels are lost in movie mode. Automatic exposure of scene average in video mode.
Screen Dimensions
4 inches
Screen Type
Capacitive LCD touch screen.
Metadata Support
Lens data automatically populated from EF, B4 and PL lenses compatible with i/Technology. Automatic recording of camera settings and clapperboard data such as project, scene number, take, and special notes.
Controls
Touch screen menus on 4 inch screen. Push buttons for other controllers. 2 programmable hotkeys.
Time Code Clock
High precision time code clock. Deviation of less than 1 frame every 8 hours.
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI, 1 x SDI monitoring.
SDI Fees
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x analog XLR switchable between mic and line levels and AES audio. Phantom power compatible.
Analog Audio Outputs
1 x 3.5mm jack headphone jack, compatible with iPhone microphone for intercom.
Sync Entries
Tri-Sync/Black Burst/Timecode.
Remote control
2 x 2.5mm LANC inputs for recording start/stop, plus iris and focus control using compatible lenses.
Computer Interface
First-generation USB 3.1 Type-C for recording to external drives and software updates.
Box Contents:
1x URSA Mini Pro 4.6K G2 Design - EF Mount
1x Dust protection hood for the lens turret
1x EF Lens Mount.
1x Power Supply
1x SD card with software and manual.
