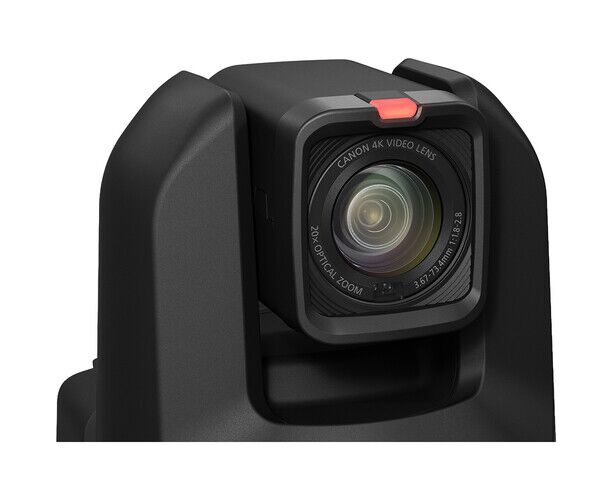

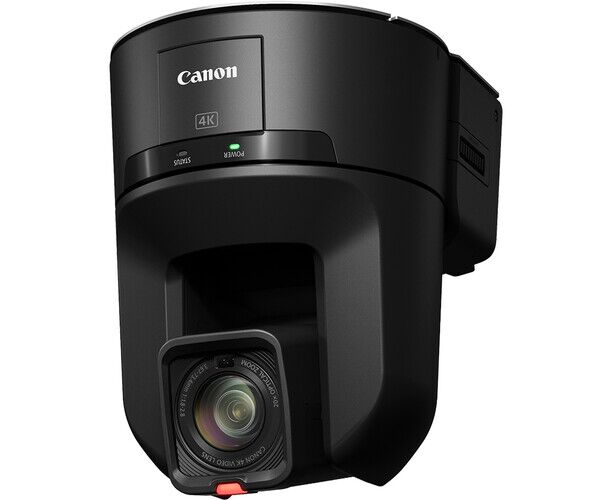

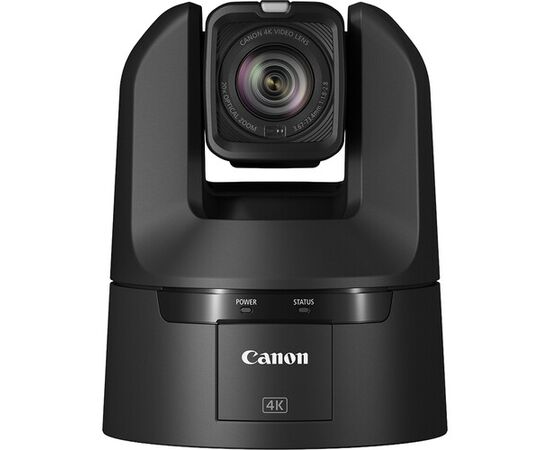

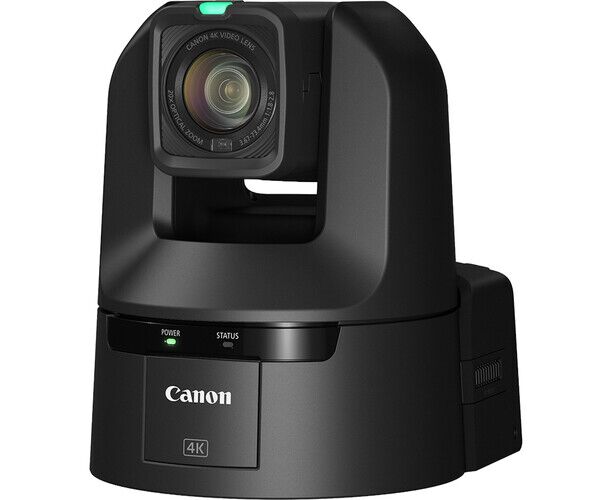

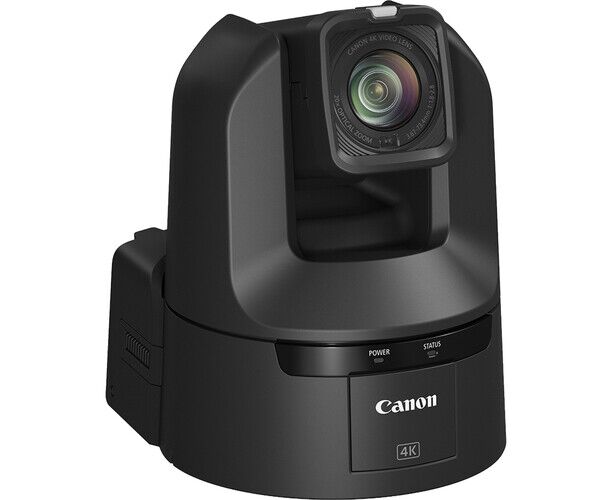

CANON CR-N400 PTZ Camera with Auto-Tracking - Black

8714570000001
7,13290 (Including tax)
Upon order
Black
c/ Auto-Tracking
Weight3.100kg

CANON CR-N400
Upgrade your PTZ camera for HDR 4K60P1 and 12G-SDI quality footage, 40x advanced zoom in Full HD and auto-tracking – the ideal option for live productions.

ZOOM IN. MONITOR SMARTER. PERFORM BETTER
Capture live productions with stunning 4K60P HDRimages1 and zoom in on up to 20x, or up to 40x advanced zoom in Full HD, automatically track subjects smoothly, and easily integrate with 12G-SDI, Time Code, Genlock, and Dual XLR.

4K POWER. PROFESSIONAL PRECISION. LIVE WITHOUT LIMITS
From newsrooms to live events, get crisp 4K resolution with professional connectivity, an advanced 40x zoom in Full HD, and auto-tracking for smooth broadcast productions.

SHOOT WITH STUNNING 4K60P
Create stunning 4K60P videos and enjoy razor-sharp detail with smooth motion that makes fast-paced action events, live sports, and cinematic scenes realistic and immersive.

CAPTURE EVERY DETAIL WITH HDR PICTURE
Reveal all the highlights and shadows with HDR images, thanks to the DIGIC DV7 processor that ensures clarity, vivid contrast and true-to-life colours, no matter the lighting conditions.

CONNECT LIKE A PRO
Easily integrate with 12G-SDI, Time Code, Genlock, and Dual XLR inputs. Designed for professional workflows, it ensures fast setup, reliable performance, and full studio compatibility.

ZOOM IN EVEN FURTHER
Get closer to the action with the longest 40x Full HD advanced zoom in the range.
Perfect for arenas, stadiums and auditoriums, it captures clear images even from the most distant places.

TRACK EVERY MOVE AUTOMATICALLY
Rely on advanced automatic tracking with face and head detection, precision motion tracking and smooth pan/tilt movements, and an enhanced pan/tilt unit to keep all subjects framed and in focus, without a camera operator.

MATCH COLORS INSTANTLY
Get consistent, broadcast-ready colors with ease. The enhanced Camera Color Matching App quickly aligns the CR-N400 with your existing cameras for consistent, professional results.

Box Contents:
1x CR-N400 Camera
1x Mounting bracket, with screw
1x Safety cable with screw
1x Camera Mount Security Cable, with Screw
1x AC Adapter
1x Remote Control (WL-N01)

Brand
CANON
Audio
Connection
2x 3-pin XLR, 1x 3.5mm TRS stereo microphone
Cameras
Built-in Filter
Built-in (off, 1/2, 1/4, 1/8), motorized
Effective Pixels
Approx. 8.29 megapixels (3840 x 2160 at 23.98/25/29.97 Hz) | Approx. 7.88 megapixels (3744 x 2104 at 50/25/59.94 Hz)
Dimensions
External Dimensions
22x19.4x17.6cm
Energy
1x Barrel Input (12VDC)
Exposure Control
Shutter Speed
1/3 – 1/2000 sec. (specific values depend on frame rate and frame rate)
White Balance Mode
AUTO (AWB), set A, set B, default settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), colour temperature setting (2000 K – 15,000 K), manual
Focusing
Focus Modes
Focus mode: Manual, Continuous AF, Face/Eye AF, Tracking AF Type: Hybrid AF, Contrast AF
Imaging
Image sensor
1/2.3-type (1/2.3-inch) single-board CMOS sensor
Lenses
20x
Maximum Aperture
f/1.8 - 2.8
Minimum Focusing Distance
1 cm at wide end | 60 cm over the entire zoom range
No. of Diaphragm Blades
8
Optical Zoom
20x
Viewing Angle
59.94/50.00 Hz frame rate: Horizontal: 63.3° (W) – 3.5° (T) Vertical: 38.9° (W) – 2.0° (T) | 29.97/25.00/23.98 Hz frame rate: Horizontal: 65.6° (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T)
Physical
Connection
1x RJ45 (RS-422) Control | 1x BNC (Time code) | 1x BNC (Genlock) | 1x USB-C Control
Movement
Rotation range: horizontal ±170° Rotation speed: 0.1° – 100°/sec. (Maximum speed at preset: 200.00°/sec.) Tilt range: vertical -30° – +100° Tilt speed: 0.1° – 100°/sec. (Maximum speed in the preset:
Weight
3.100kg
Storage
Storage Capacity
Single Slot: SD (Unspecified Type)
Video
Connection
1x BNC (12G-SDI) | 1x BNC (3G-SDI) | 1x HDMI | 1x RJ45 (NDI)
Gamma Curve
BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
IP Transmission
H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT: 640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p
Outputs
SDI: [12G-SDI]/4:2:2 10-bit / [3G-SDI]/4:2:2-bit 10-bit | HDMI: [HDMI]/4:2:2 10-bit | IP: Frame rate: 59.94 Hz / 29.97 Hz / 50.00 Hz / 25.00 Hz / 23.98 Hz /
